Test C: The High/Low Wiper Speeds Do Not Operate Correctly (Intermittent Wiper Mode OK)

PINPOINT TEST C: THE HIGH/LOW WIPER SPEEDS DO NOT OPERATE CORRECTLY (INTERMITTENT WIPER MODE OK)

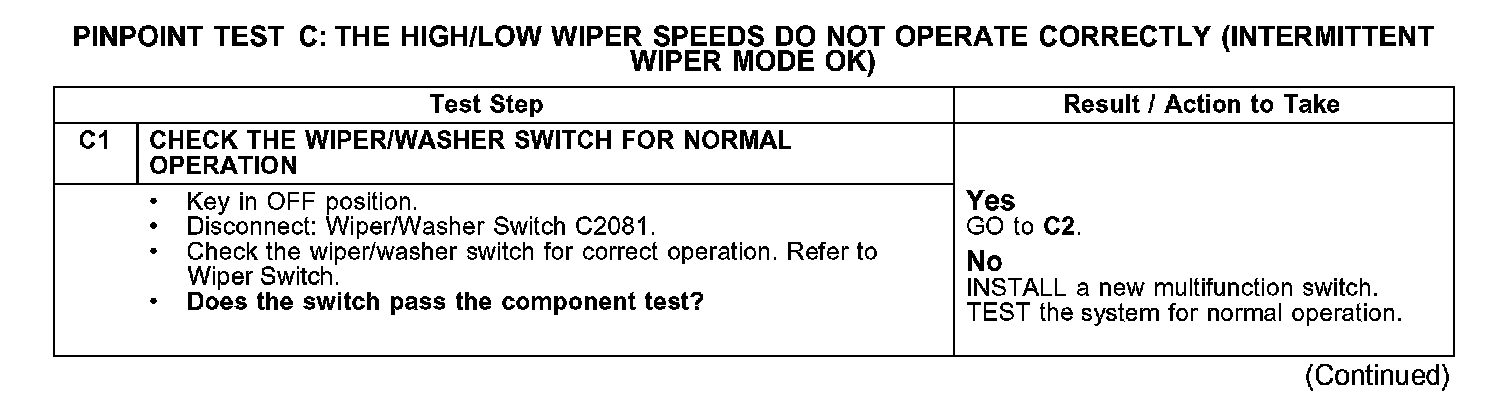

C1:

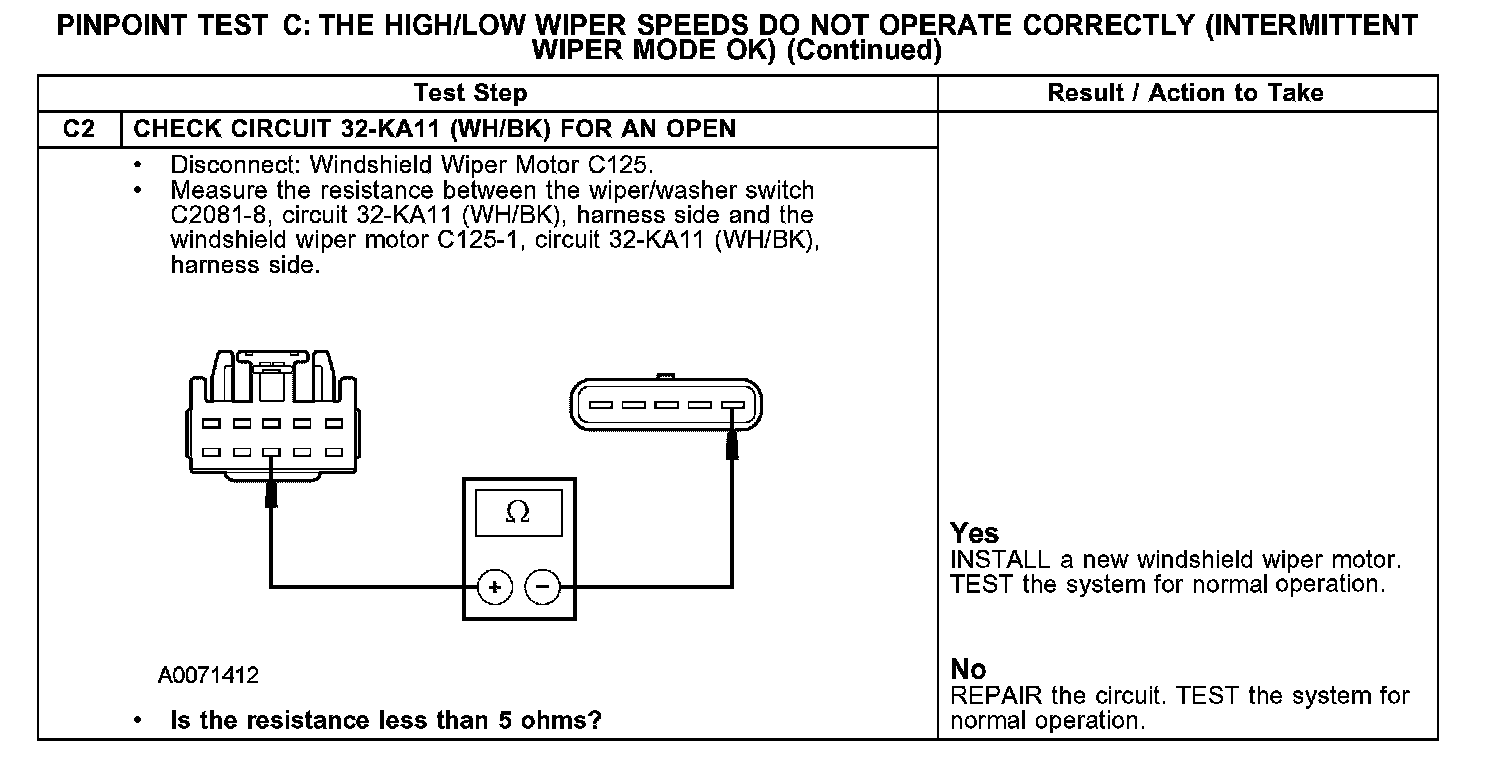

C2:

Normal Operation
When low speed operation is selected, the windshield wiper motor receives voltage through circuit 32-KA10 (WH/GN). When high speed operation is selected, the windshield wiper motor receives voltage through circuit 32-KA11 (WH/BK).

Possible Causes
- circuit 32-KA11 (WH/BK) open
- wiper/washer switch
- windshield wiper motor
