Test B: Vibration When The Brakes Are Applied

Pinpoint Test B: Vibration When The Brakes Are Applied

Possible Causes
^ Uneven brake pad wear
^ Brake disc pad transfer
^ Brake disc
^ Suspension components

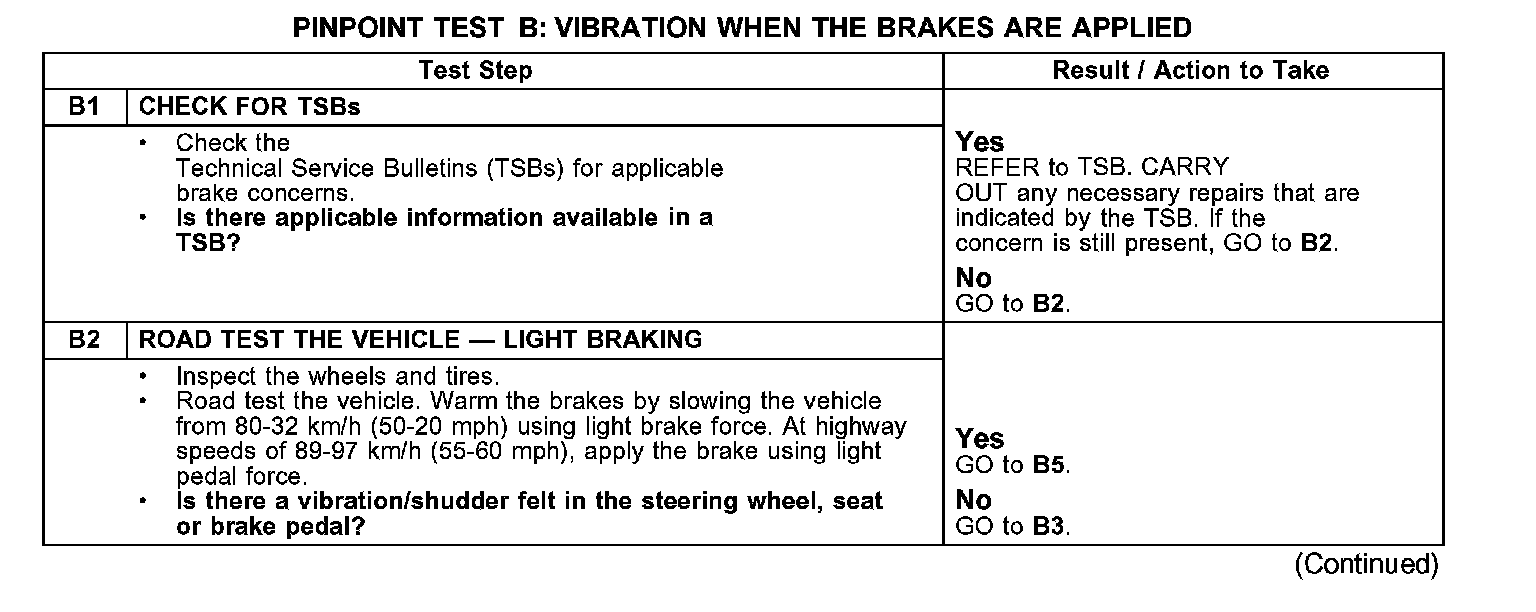

B1-B2:




B3-B8:
