Amplifier, Sound System
>>
Subwoofer Amplifier, Left Front Channel

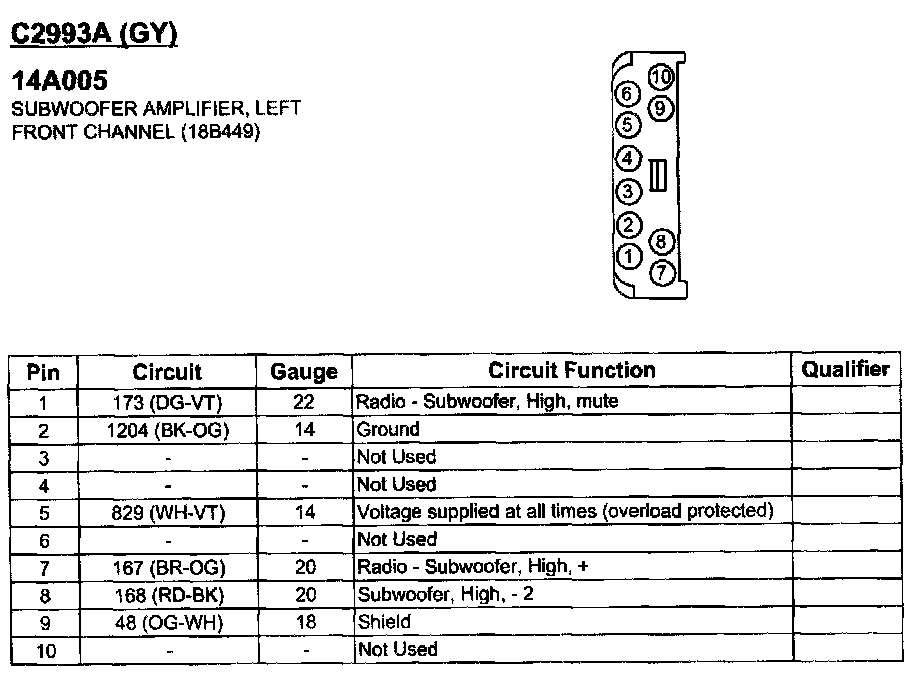

Subwoofer Amplifier, Left Front Channel
C2993A:
