Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2006
>>
Mustang V6-4.0L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
>>

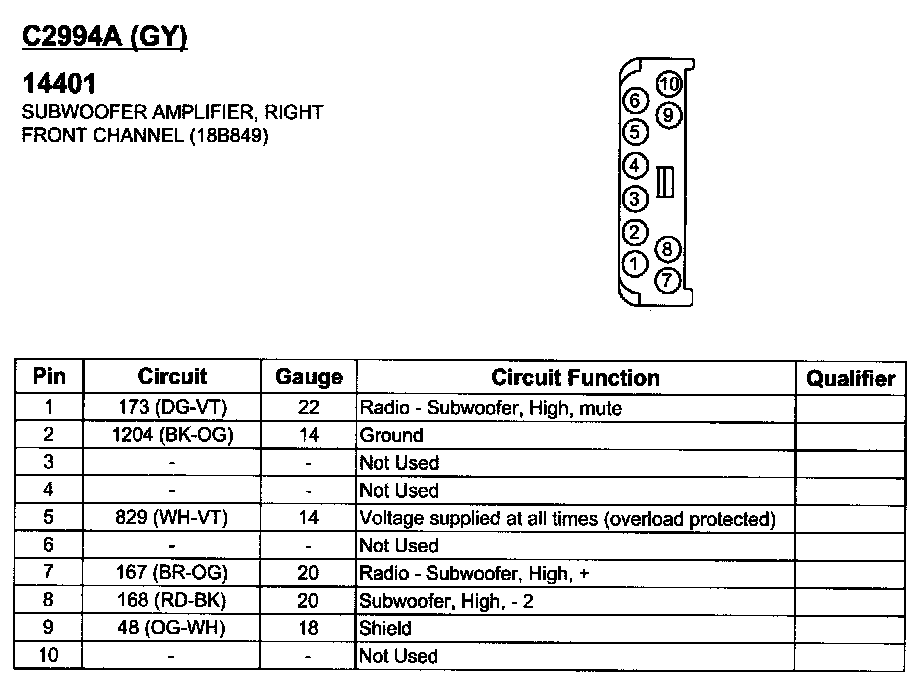

Subwoofer Amplifier, Right Front Channel
Subwoofer Amplifier, Right Front Channel
C2994A:
