Home >> Ford >> 2006 >> Mustang V6-4.0L VIN N >> Repair and Diagnosis >> Diagrams >> Connector Views >> C3116-C9013 >> C4158B

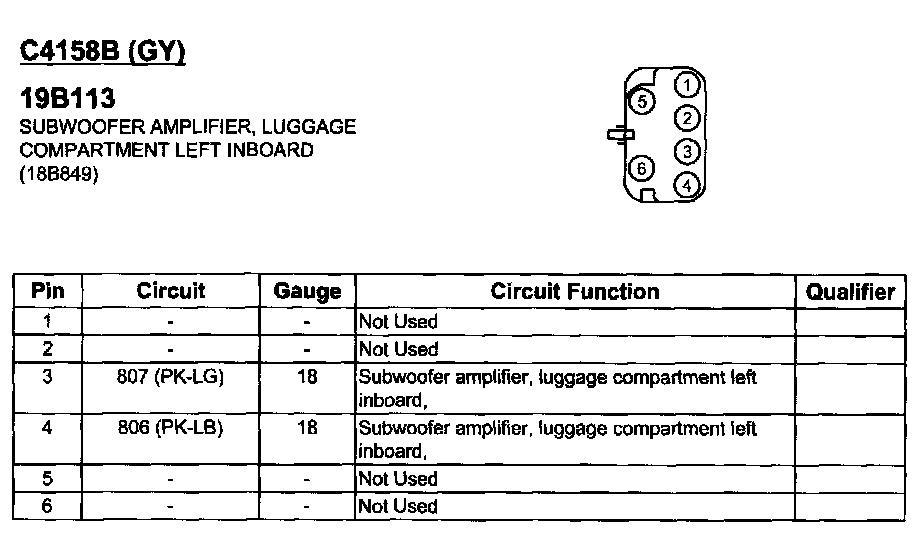

C4158B

C4158B:
