Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 2006 >> Mustang V6-4.0L VIN N >> Repair and Diagnosis >> Diagrams >> Connector Views >> C3116-C9013 >> C4160A

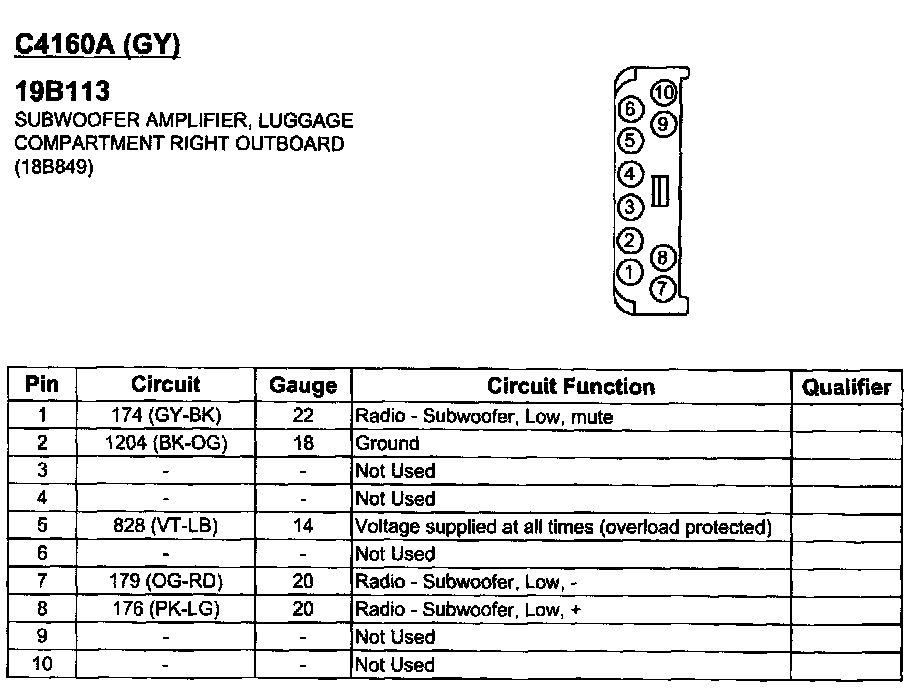

C4160A

C4160A:
