Ford
>>
2006
>>
Mustang V6-4.0L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
Door Switch
>>

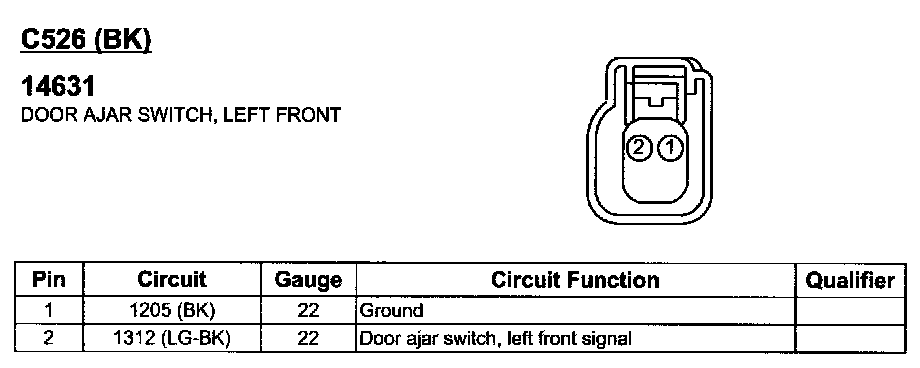

Door Ajar Switch. Left Front
Door Ajar Switch. Left Front
C526:
