Instrument Panel, Gauges and Warning Indicators
>>
Door Switch
>>

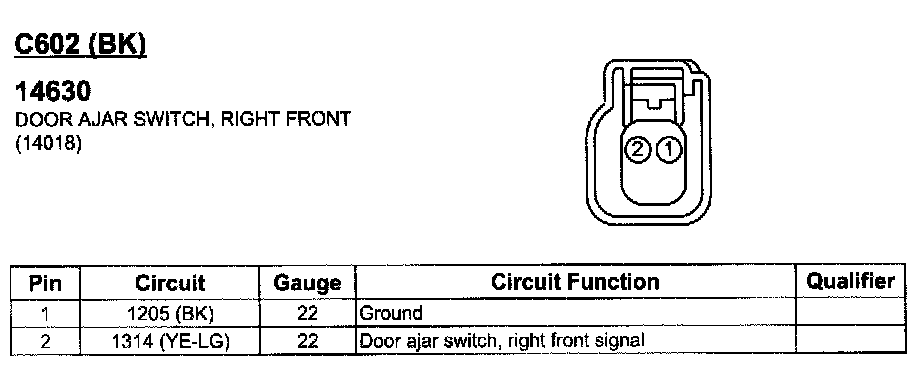

Door Ajar Switch. Right Front
Door Ajar Switch. Right Front
C602:
