Drive Belts, Mounts, Brackets and Accessories: Description and Operation

Accessory Drive





Accessory Drive Belt Routing 4.0L SOHC

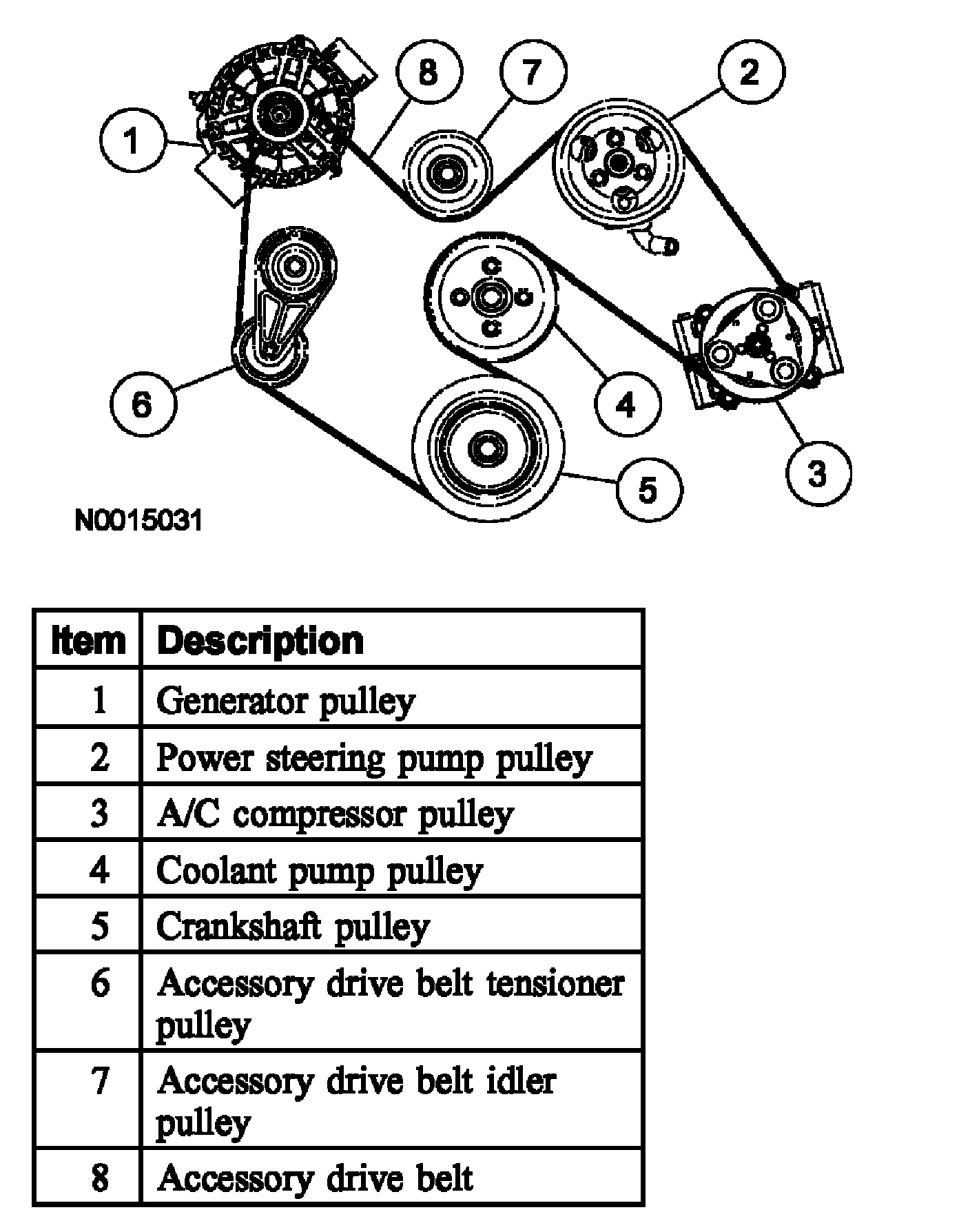

Accessory Drive Belt Routing 4.6L (3V)
