Instrument Cluster (IC) Lens

INSTRUMENT CLUSTER LENS

Removal and Installation
1. Remove the instrument cluster.

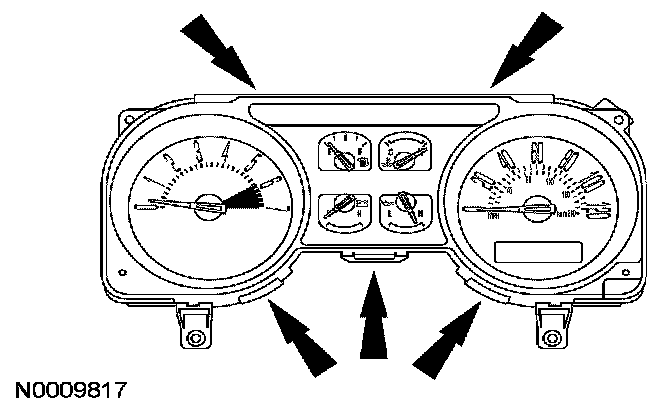

2. Unclip the retaining tabs and remove the instrument cluster lens.
3. To install, reverse the removal procedure.
