Test W: The Traction Control Indicator Is Never/Always On

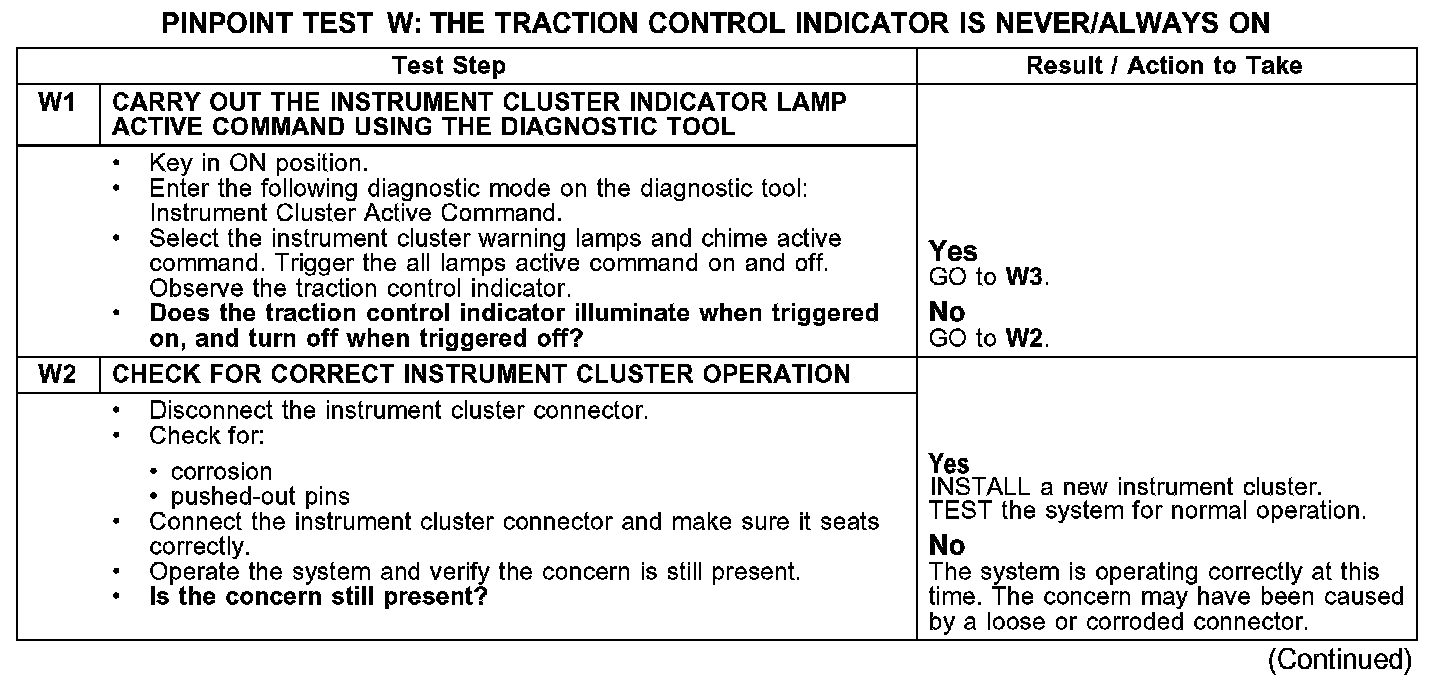

PINPOINT TEST W: THE TRACTION CONTROL INDICATOR IS NEVER/ALWAYS ON

W1-W2:

W3:

Normal Operation
The traction control indicator informs the driver that a traction control event is taking place, by flashing the indicator. It is also used to indicate a malfunction in the traction control system by illuminating the indicator constantly (not flashing).

Possible Causes
- anti-lock brake system (ABS) module
- instrument cluster
