Home >> Ford >> 2006 >> Mustang V6-4.0L VIN N >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Locations

Air Bag Systems: Locations

Air Bag And Safety Belt Pretensioner Supplemental Restraint System (SRS) Components (Illustration 1 Of 2):

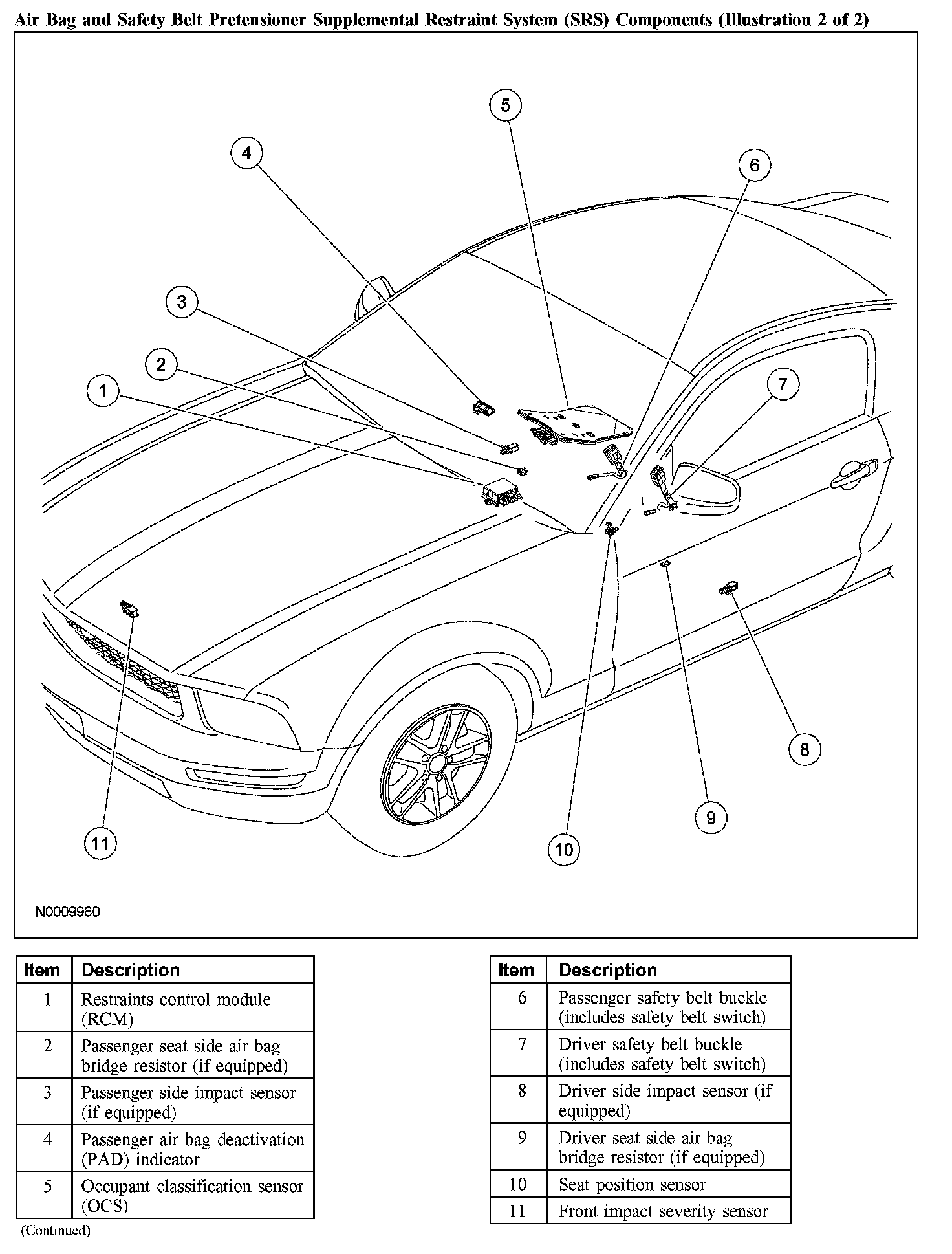

Air Bag And Safety Belt Pretensioner Supplemental Restraint System (SRS) Components (Illustration 2 Of 2):
