Thermostat, Engine Cooling
Thermostat and
Thermostat Housing
- Exploded View

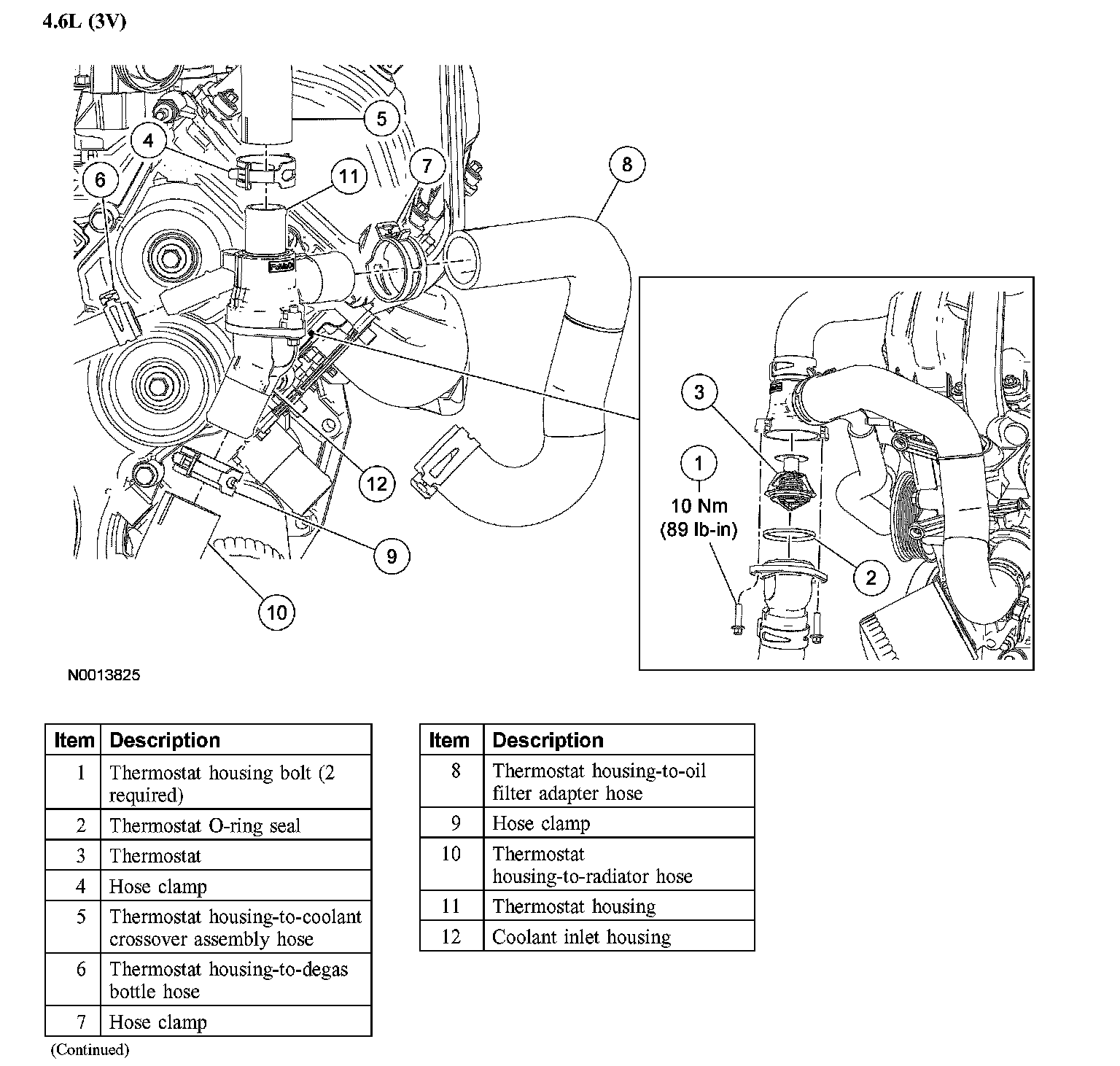

Thermostat and Thermostat Housing - Exploded View, 4.6L (3V):
