Mechanical Specifications
>>
Engine
>>
Intake Manifold
Intake Manifold

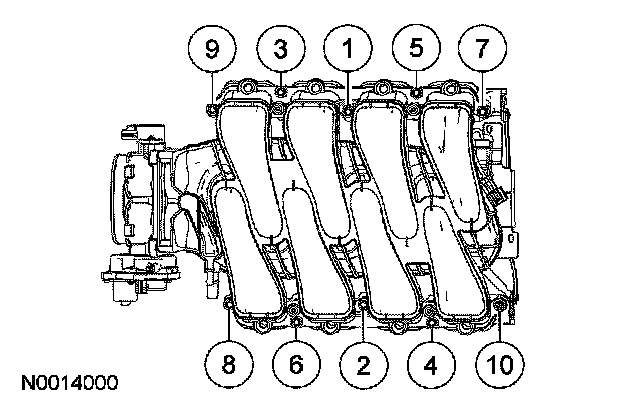

Intake manifold
bolts & stud bolt
10 Nm (89 inch lbs.)
Throttle body nuts & bolts
10 Nm (89 inch lbs.)
