Oil Pan, Engine

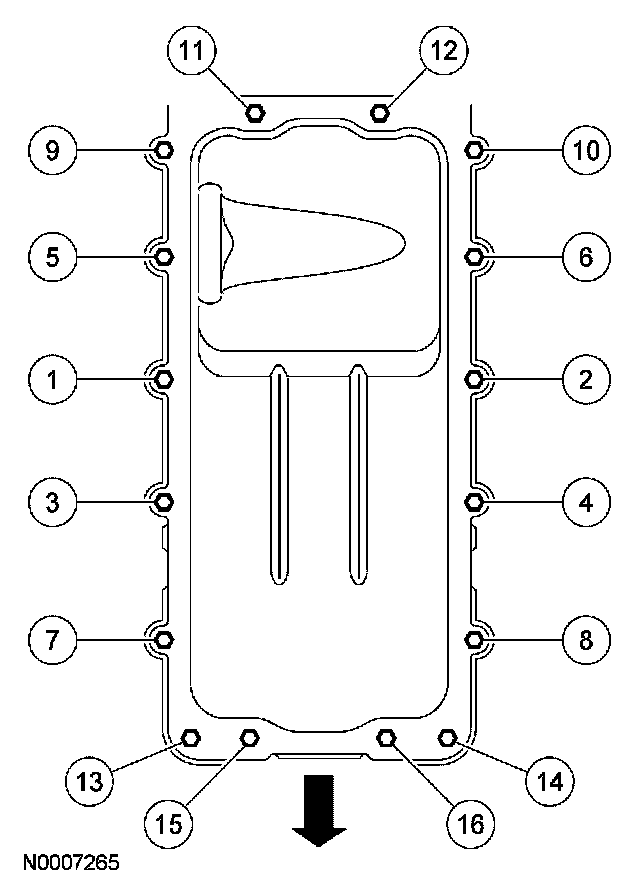

Oil pan bolts
First pass 2 Nm (18 inch lbs.)
Second pass 20 Nm (15 ft. lbs.)
Final pass tighten 60°
