Home >> Ford >> 2006 >> Taurus V6-3.0L VIN 2 Flex Fuel >> Repair and Diagnosis >> Diagrams >> Components >> Component Location Views >> View 151-32 (Rear Door)

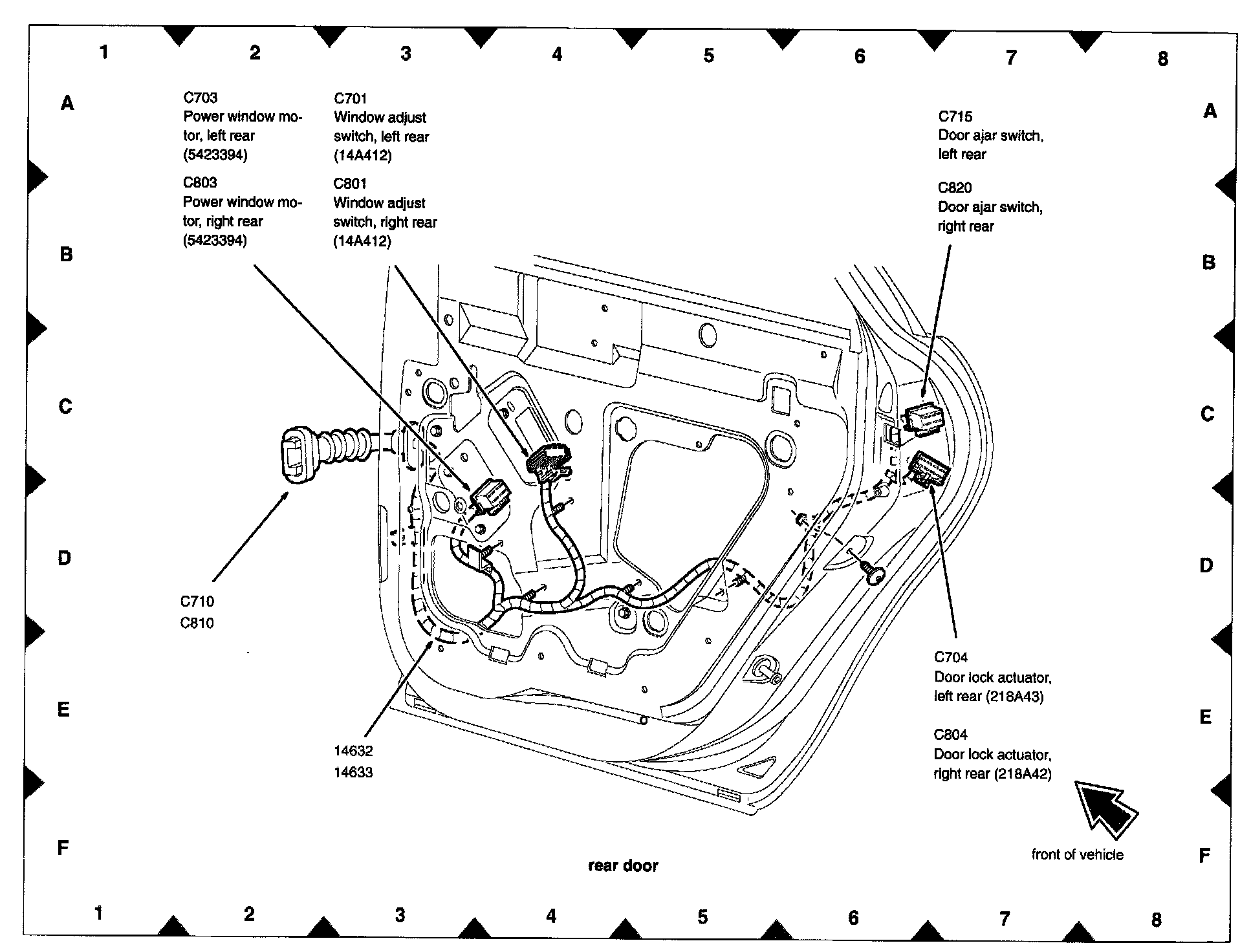

View 151-32 (Rear Door)

View 151-32 (Rear Door):
