Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2006
>>
Taurus V6-3.0L VIN 2 Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radiator Cooling Fan Motor Relay
>>
Engine Cooling Fan Relay

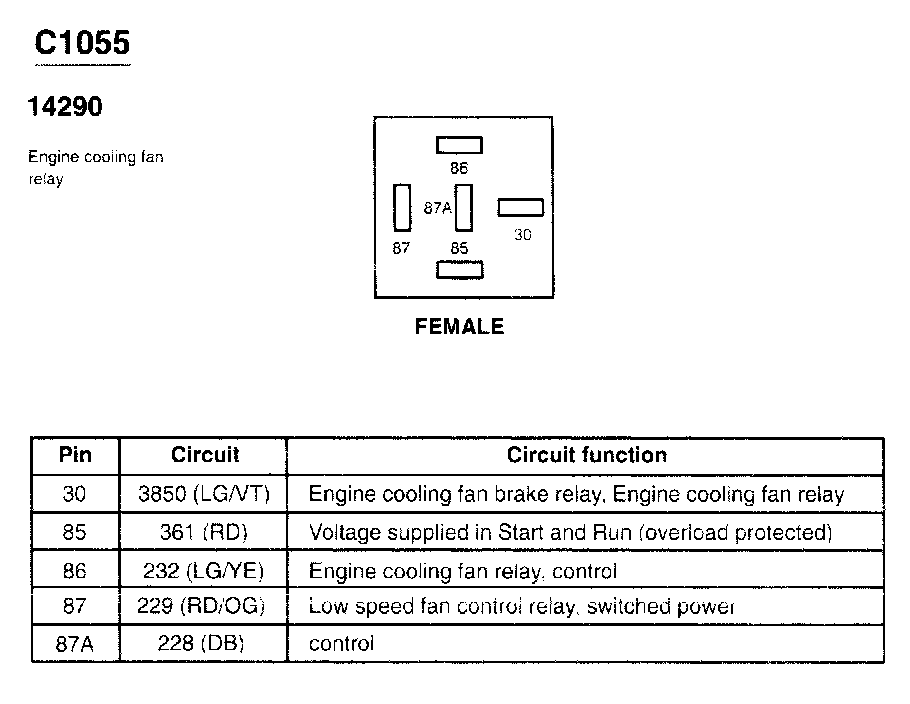

Engine Cooling Fan Relay
C1055:
