Taurus V6-3.0L VIN 2 Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

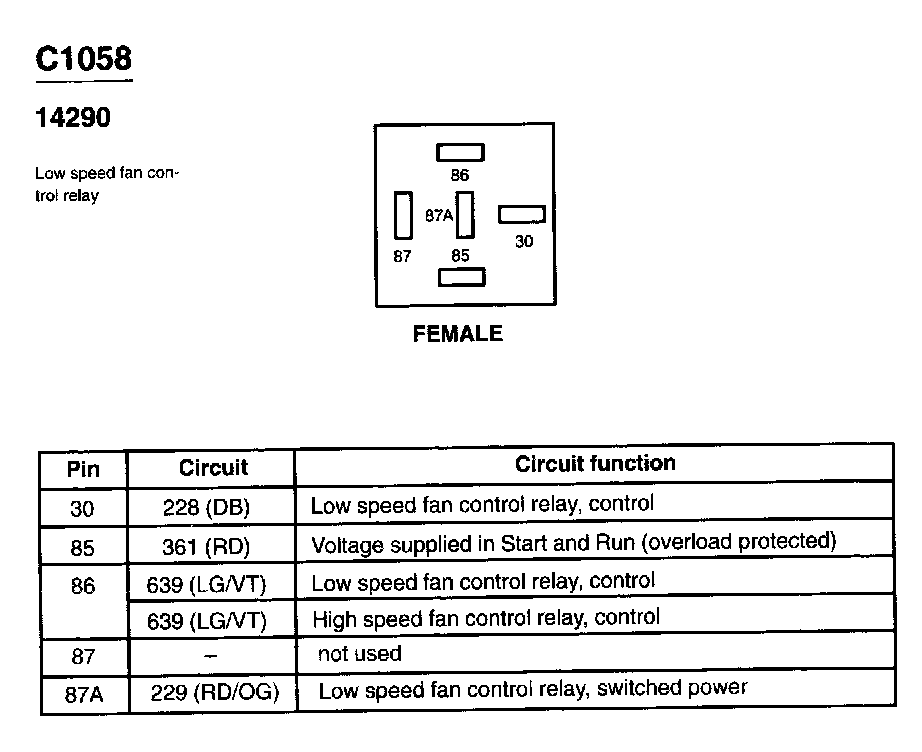

Radiator Cooling Fan Motor Relay
>>
Low Speed Fan Control Relay
Low Speed Fan Control Relay
C1058:
