Home >> Ford >> 2006 >> Taurus V6-3.0L VIN 2 Flex Fuel >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Relay >> Wiper Run/Park Relay

Wiper Run/Park Relay

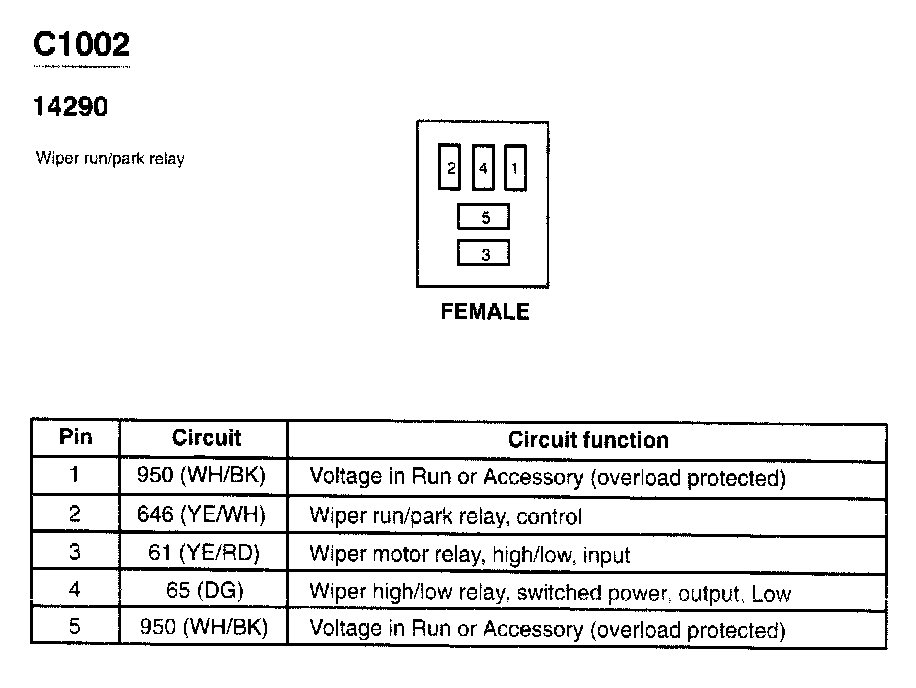

C1002:
