Home >> Ford >> 2006 >> Taurus V6-3.0L VIN 2 Flex Fuel >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Body and Frame

Body and Frame

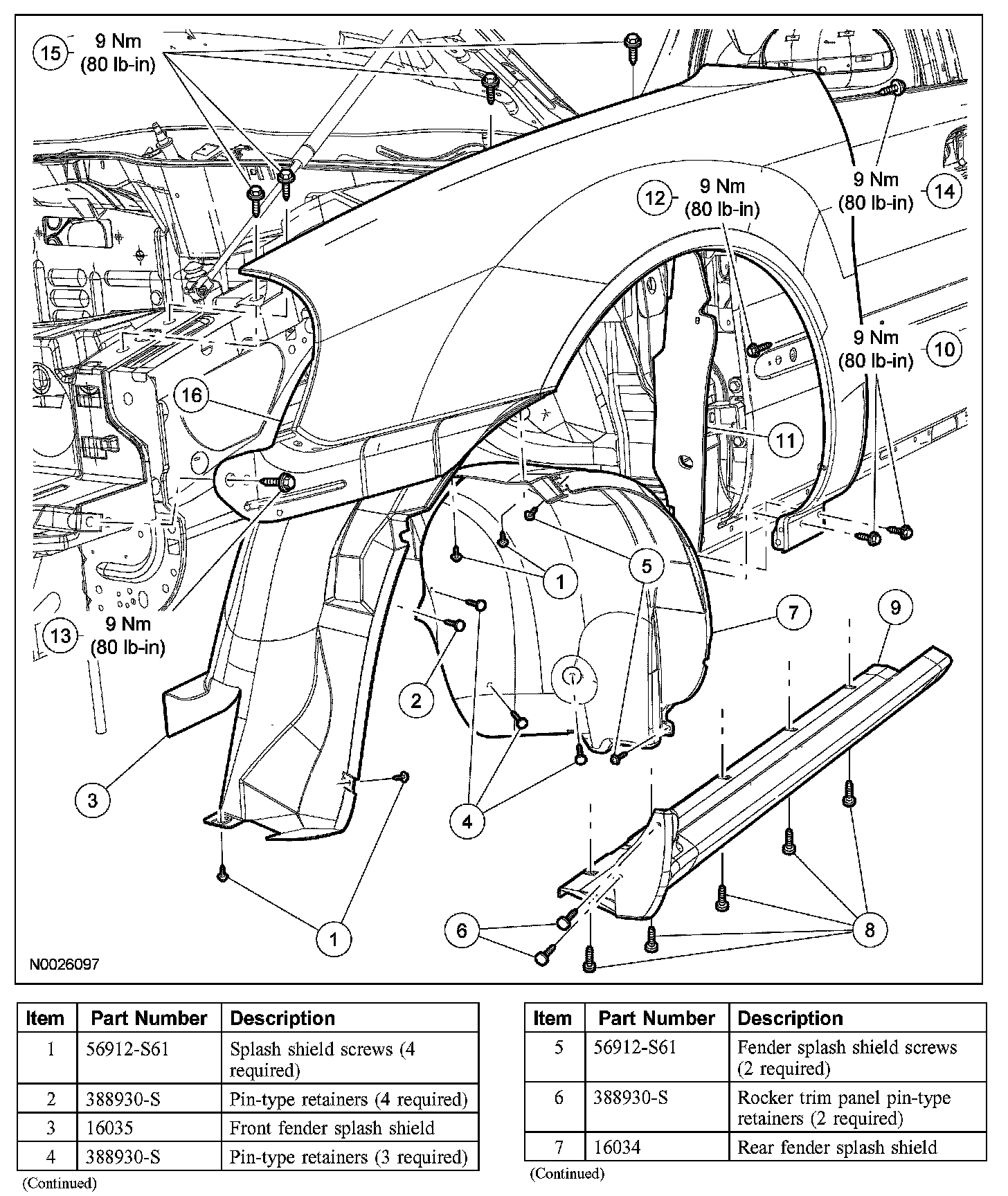

Part 1:

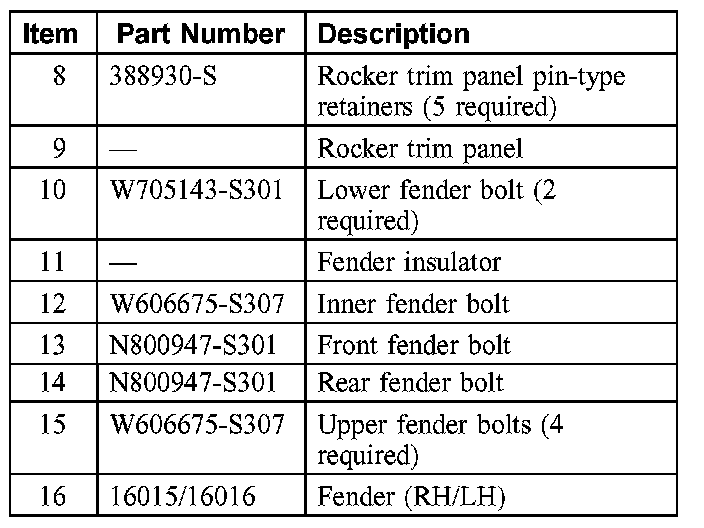

Part 2:
