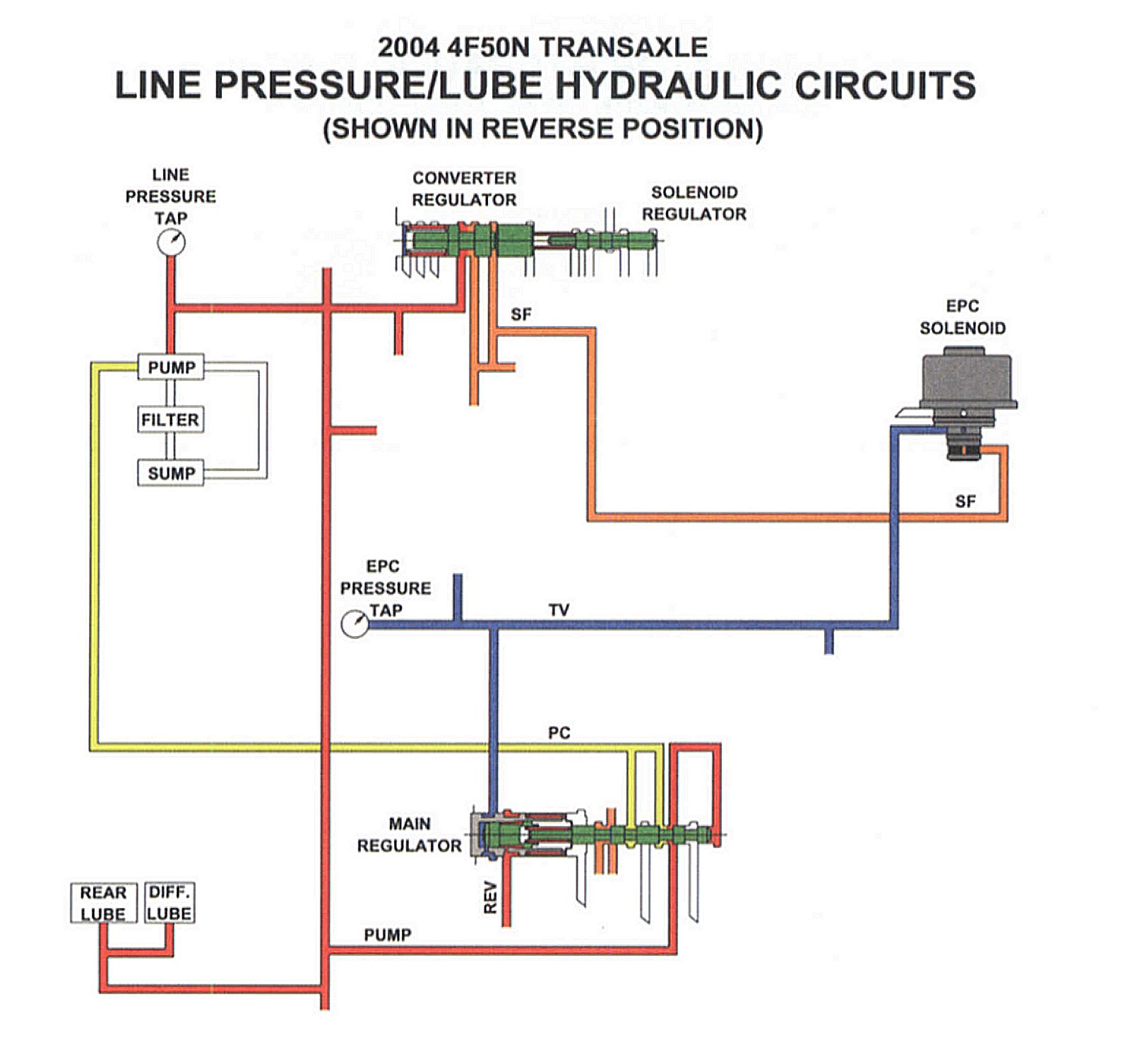

Line Pressure/Lube Hydraulic Points
Diagram(s) sourced from final Ford publication for 4F50N Transaxle.
