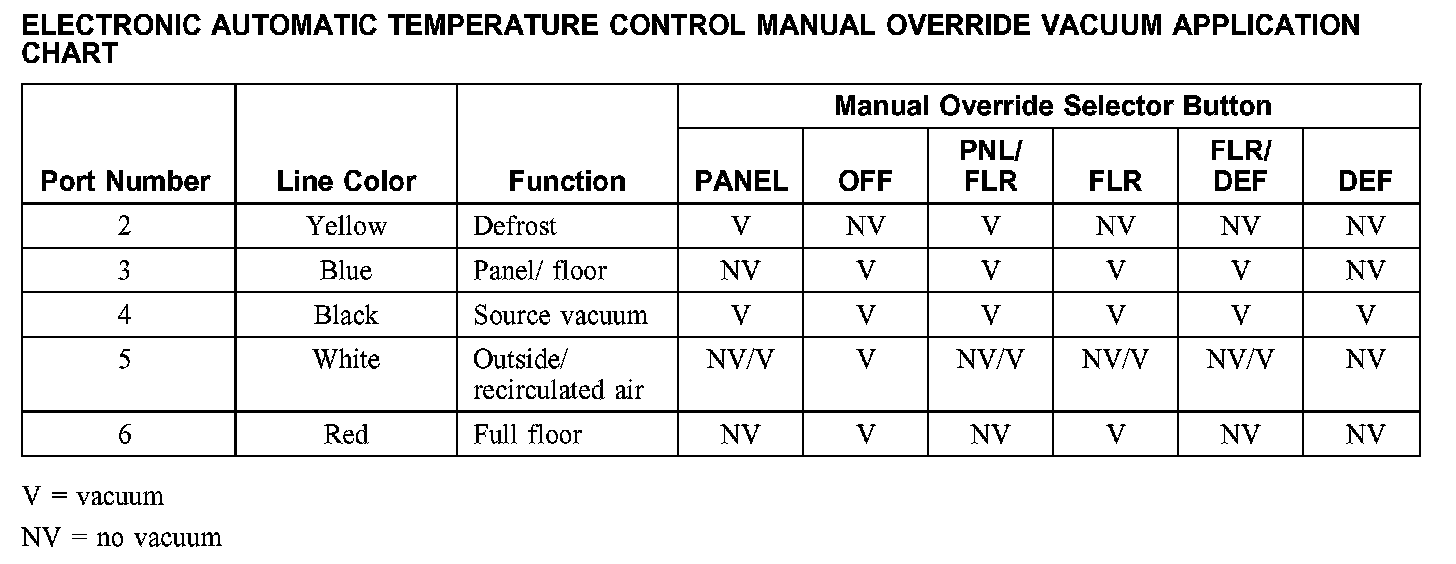

Electronic Automatic Temperature Control Manual Override Vacuum Application Chart
Electronic Automatic Temperature Control Manual Override Vacuum Application Chart
Electronic Automatic Temperature Control Manual Override Vacuum Application Chart:
