Ford
>>
2006
>>
Taurus V6-3.0L VIN 2 Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Heating and Air Conditioning
>>
Manual Climate Control Vacuum Connector End View
Manual Climate Control Vacuum Connector End View

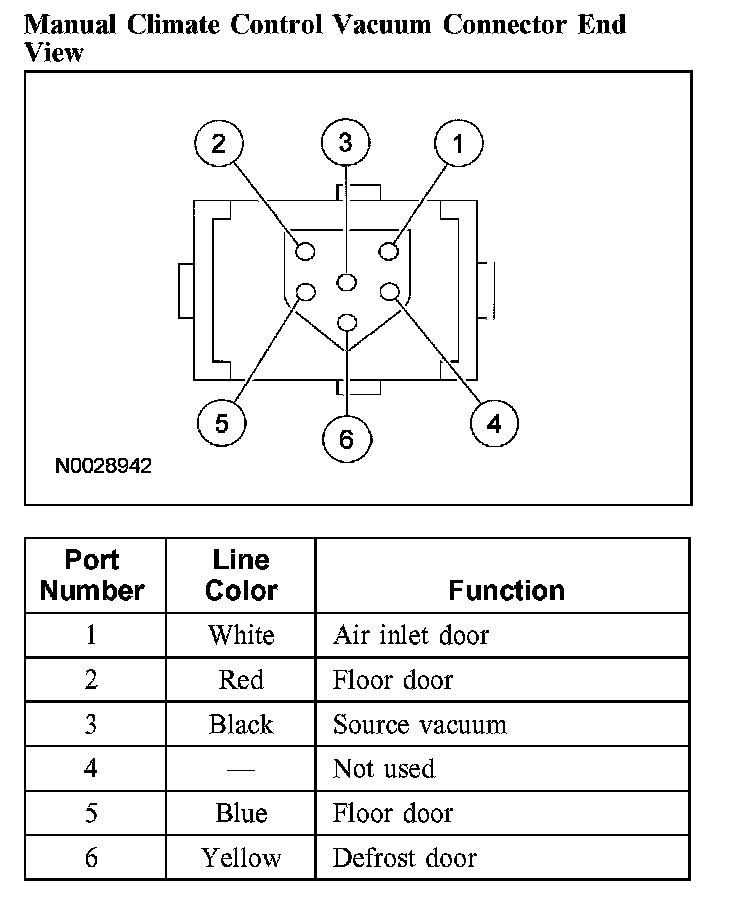

Manual Climate Control Vacuum Connector End View:
