Electronic Automatic Temperature Control Vacuum Connector End View
Electronic Automatic Temperature Control Vacuum Connector End View

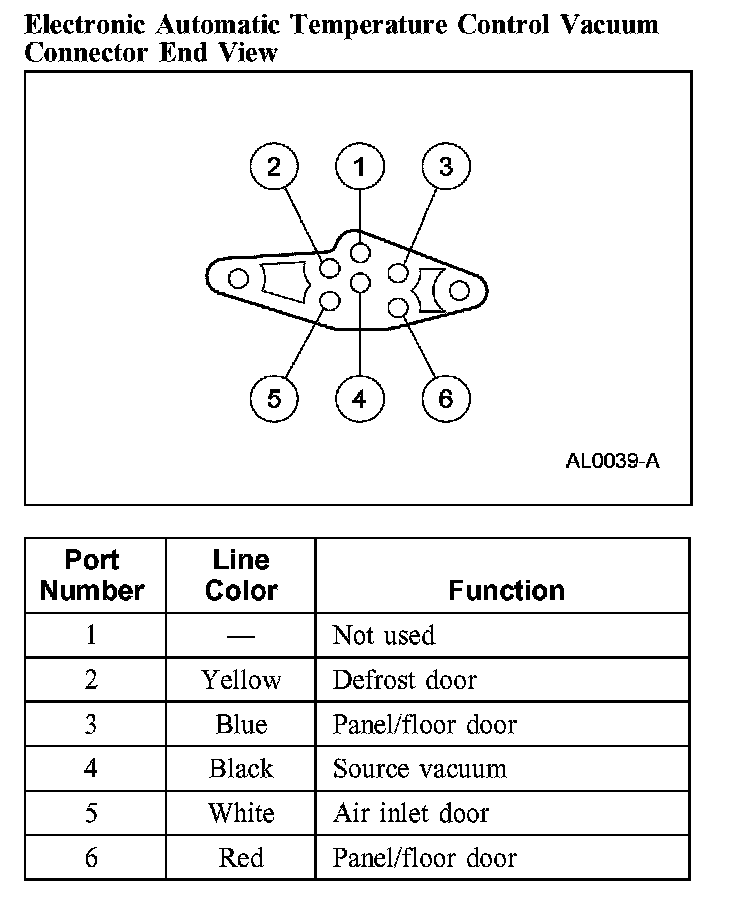

Electronic Automatic Temperature Control Vacuum Connector End View:
