Manual Climate Control Vacuum Schematic

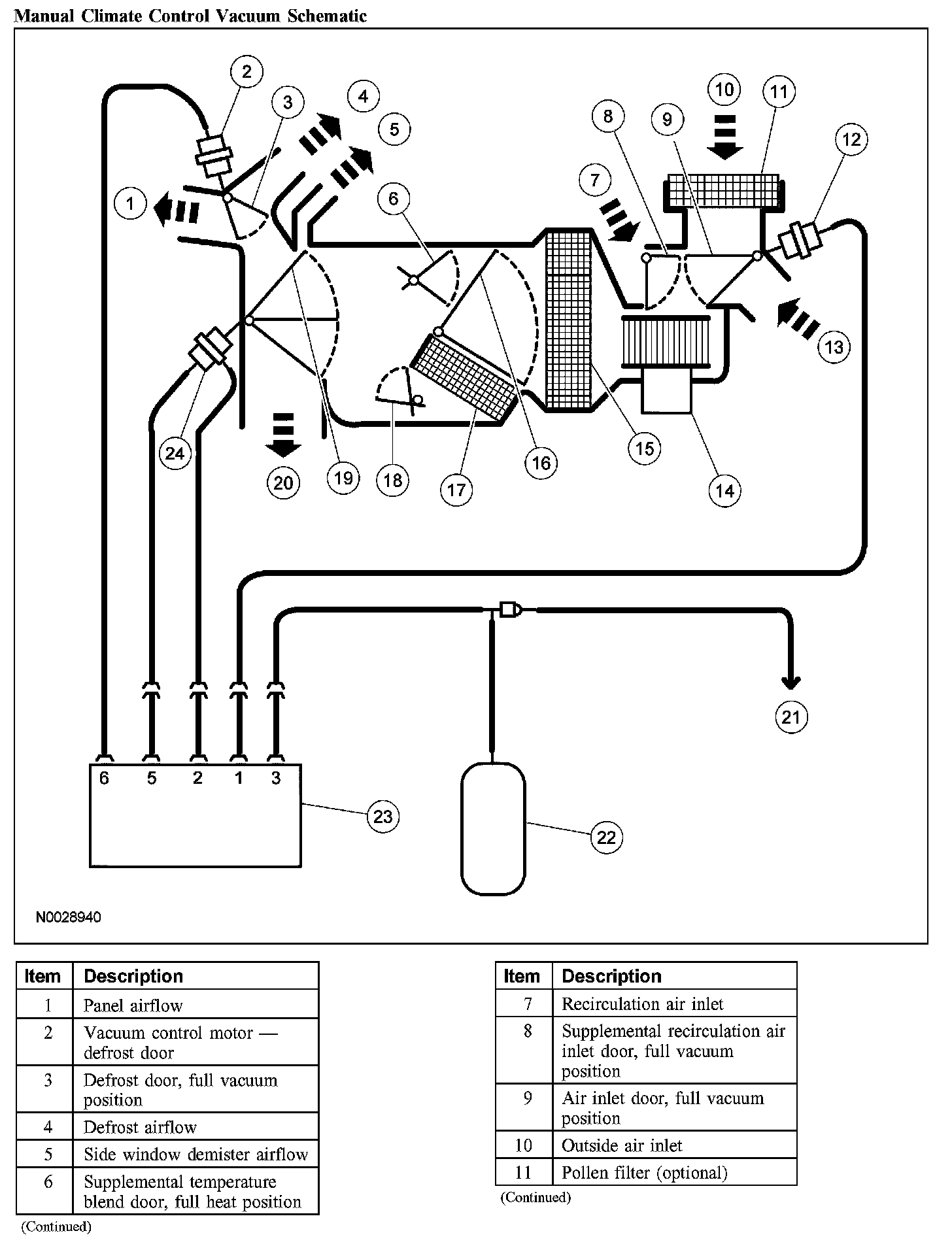

Manual Climate Control Vacuum Schematic (Part 1):

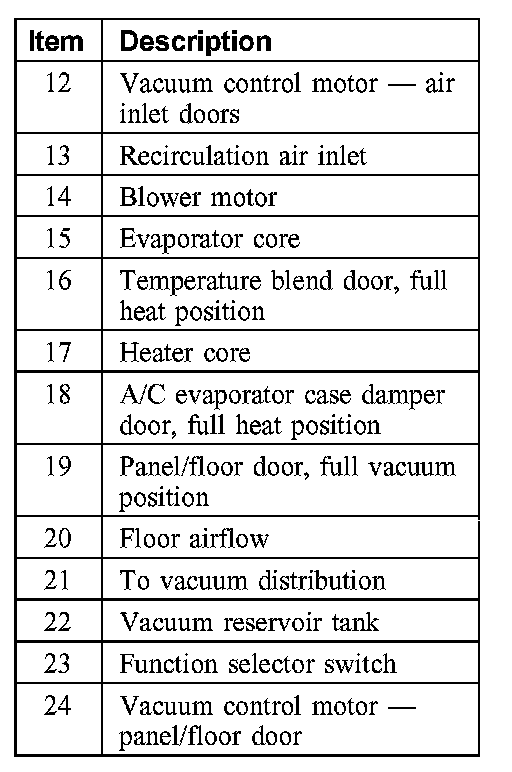

Manual Climate Control Vacuum Schematic (Part 2):
