Vacuum Schematic
>>

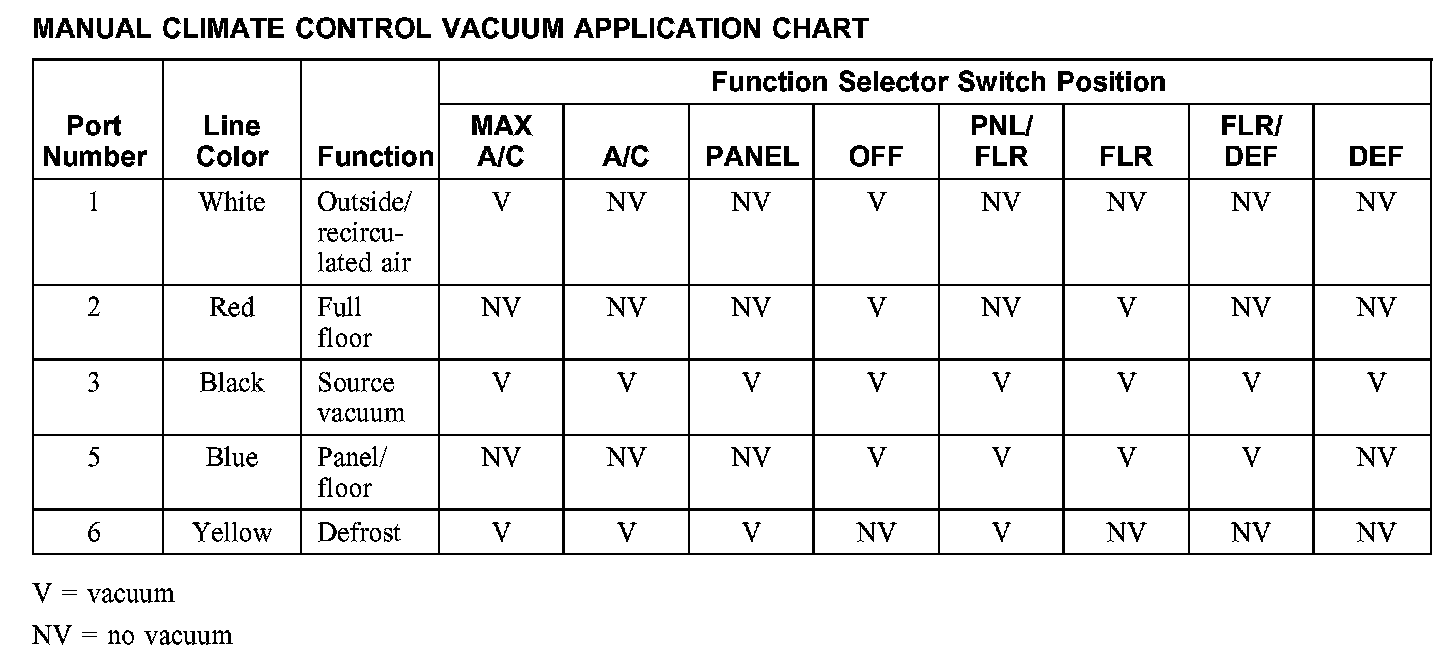

Manual Climate Control Vacuum Application Chart
Manual Climate Control Vacuum Application Chart
Manual Climate Control Vacuum Application Chart:
