Home >> Ford >> 2008 >> Crown Victoria V8-4.6L Flex Fuel >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Trunk / Liftgate Switch >> Diagrams >> Luggage Compartment Lid Release Switch 1

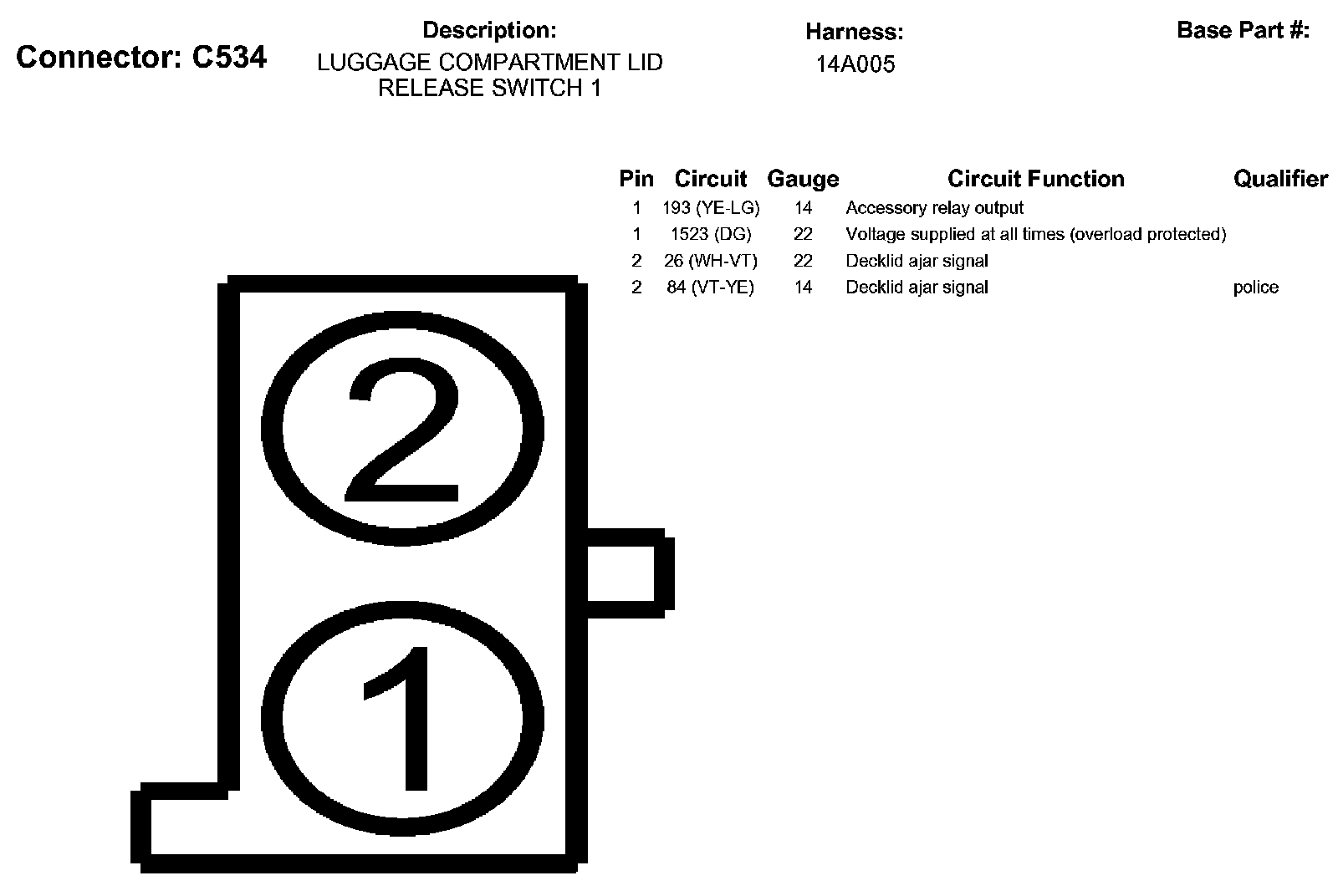

Luggage Compartment Lid Release Switch 1

C534:
