Antenna Module

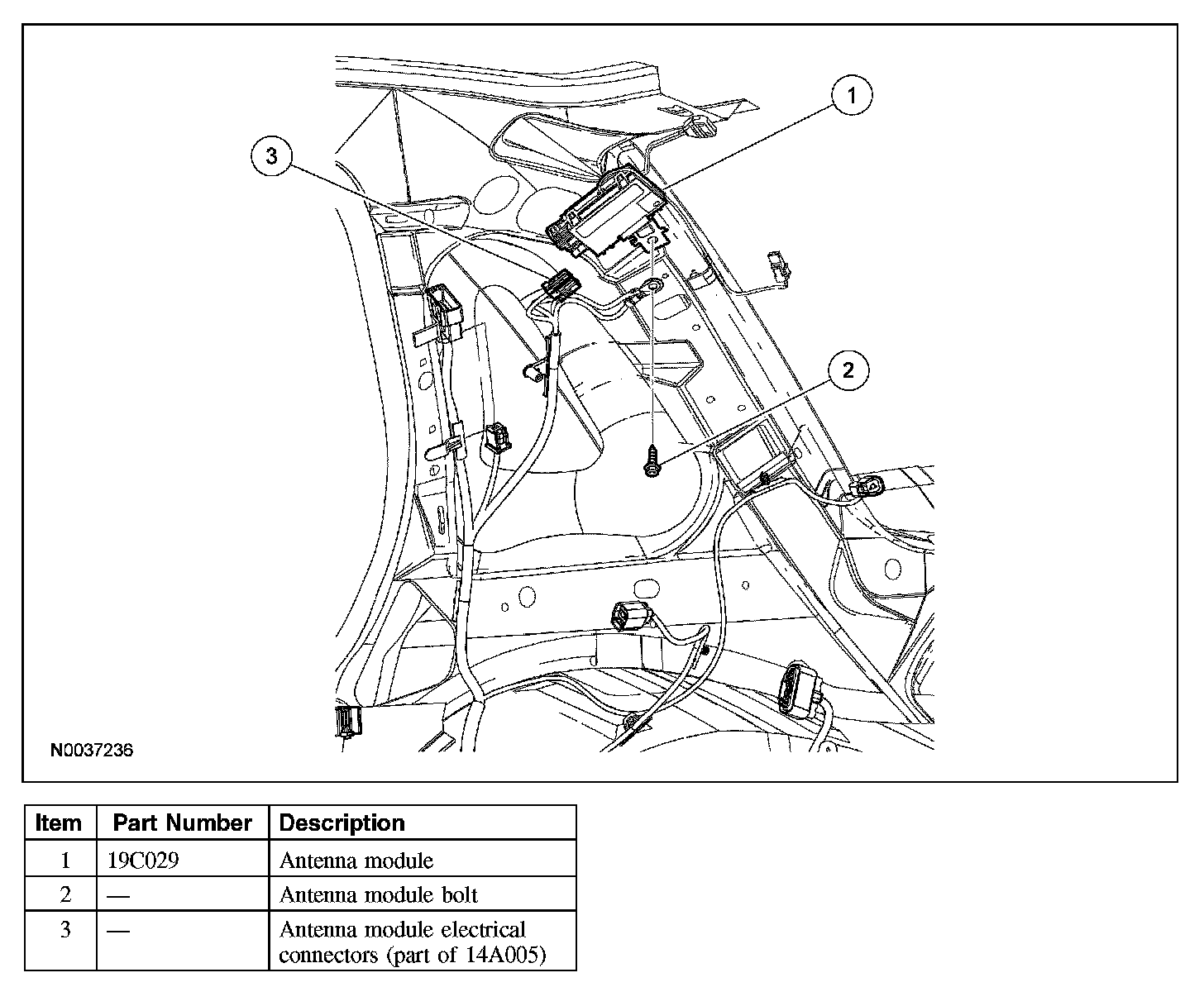

ANTENNA MODULE







Removal and Installation
1. Remove the RH rear quarter trim panel.
2. Remove the bolt and the antenna module.
- Disconnect the electrical connectors.

3. To install, reverse the removal procedure.
