Home >> Ford >> 2008 >> Crown Victoria V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C160-C218B >> C192

C192

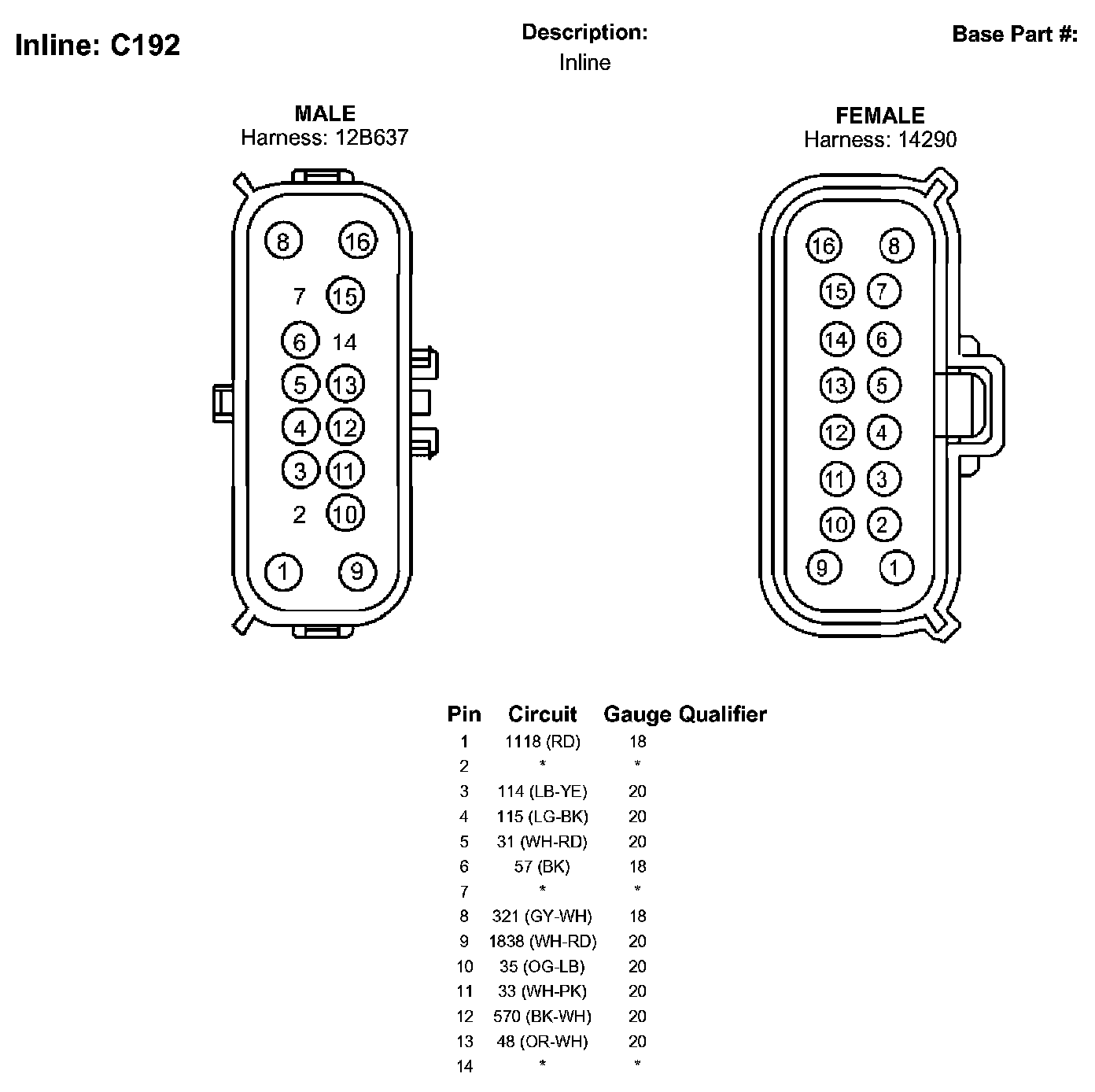

C192 (Part 1):

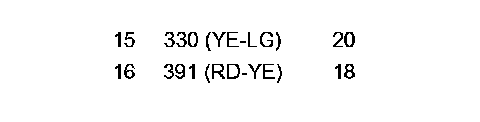

C192 (Part 2):
