Home >> Ford >> 2008 >> Crown Victoria V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C219-C305 >> C248

C248

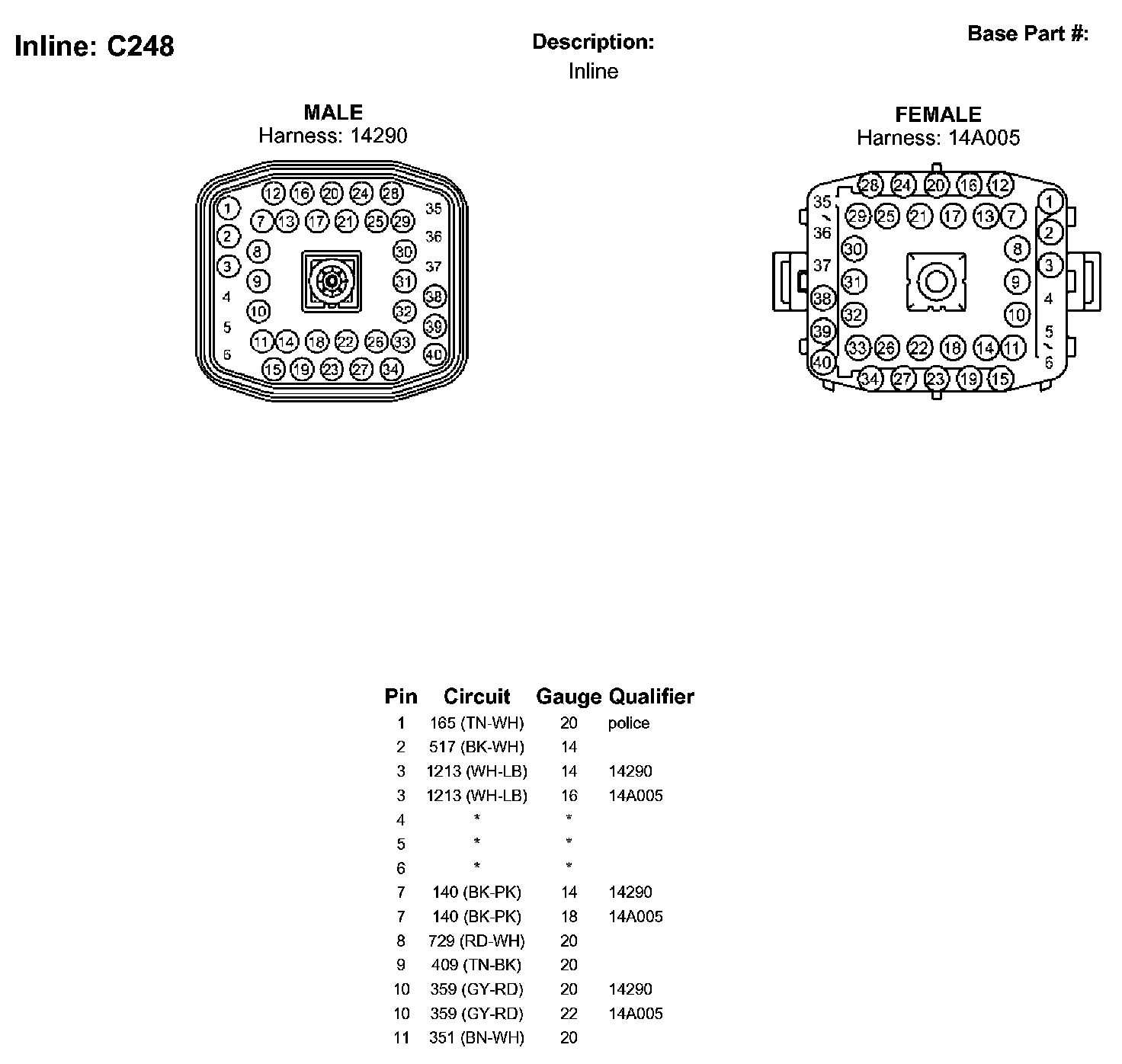

C248 (Part 1):

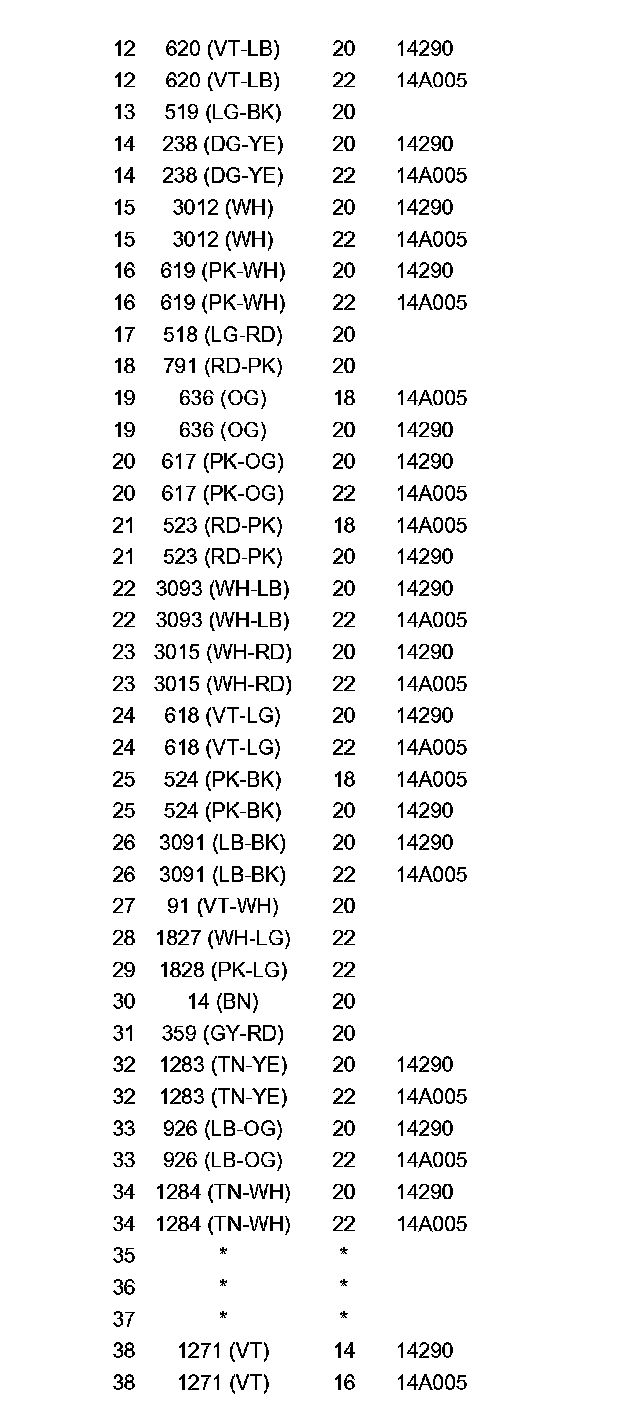

C248 (Part 2):



C248 (Part 3):
