Connector Views
>>
Fuse Block
>>
Central Junction Box
Central Junction Box

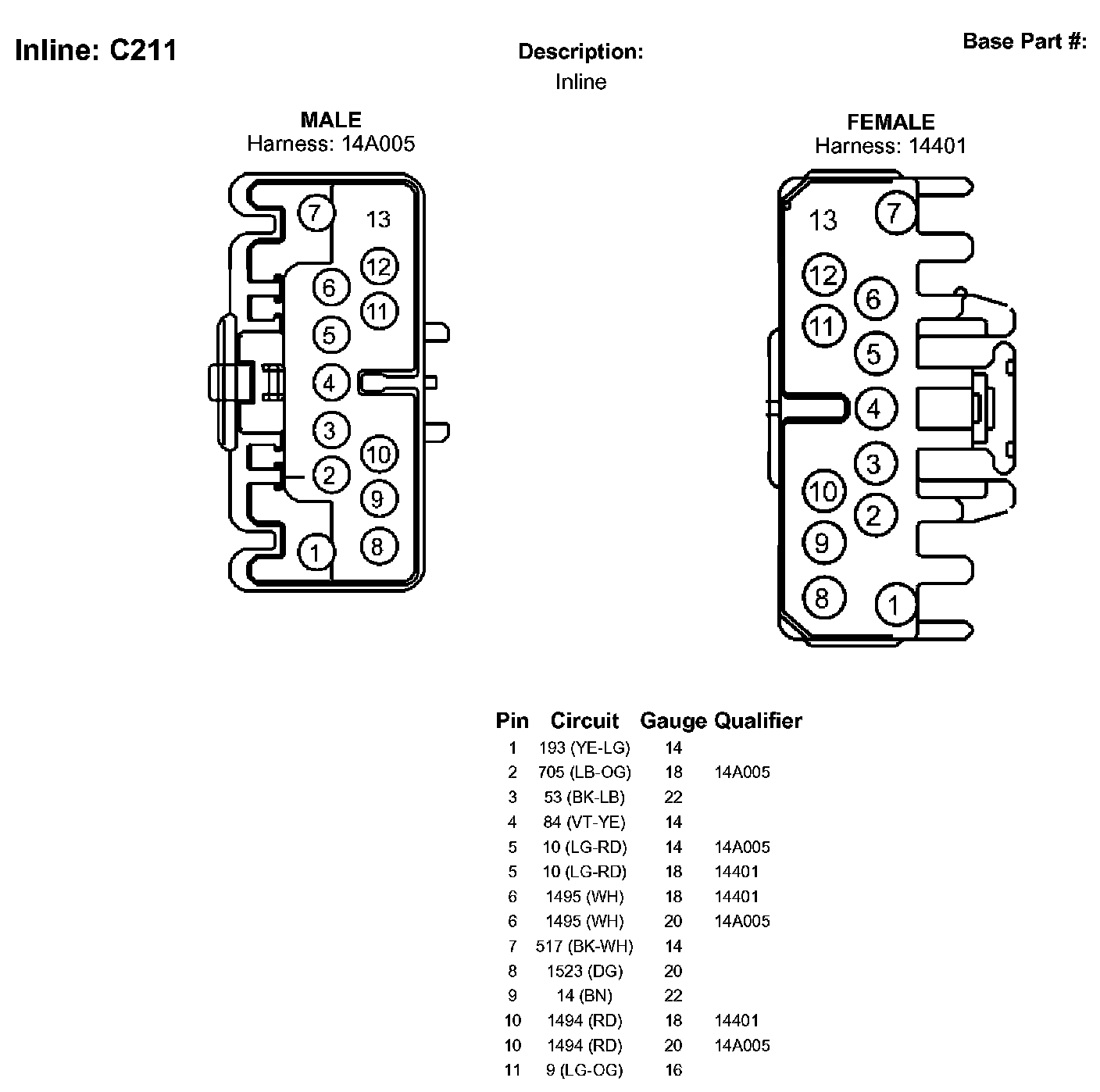

C211 (Part 1):

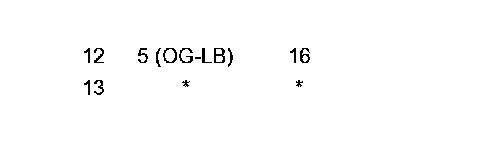

C211 (Part 2):
