Center Mounted Brake Lamp: Service and Repair

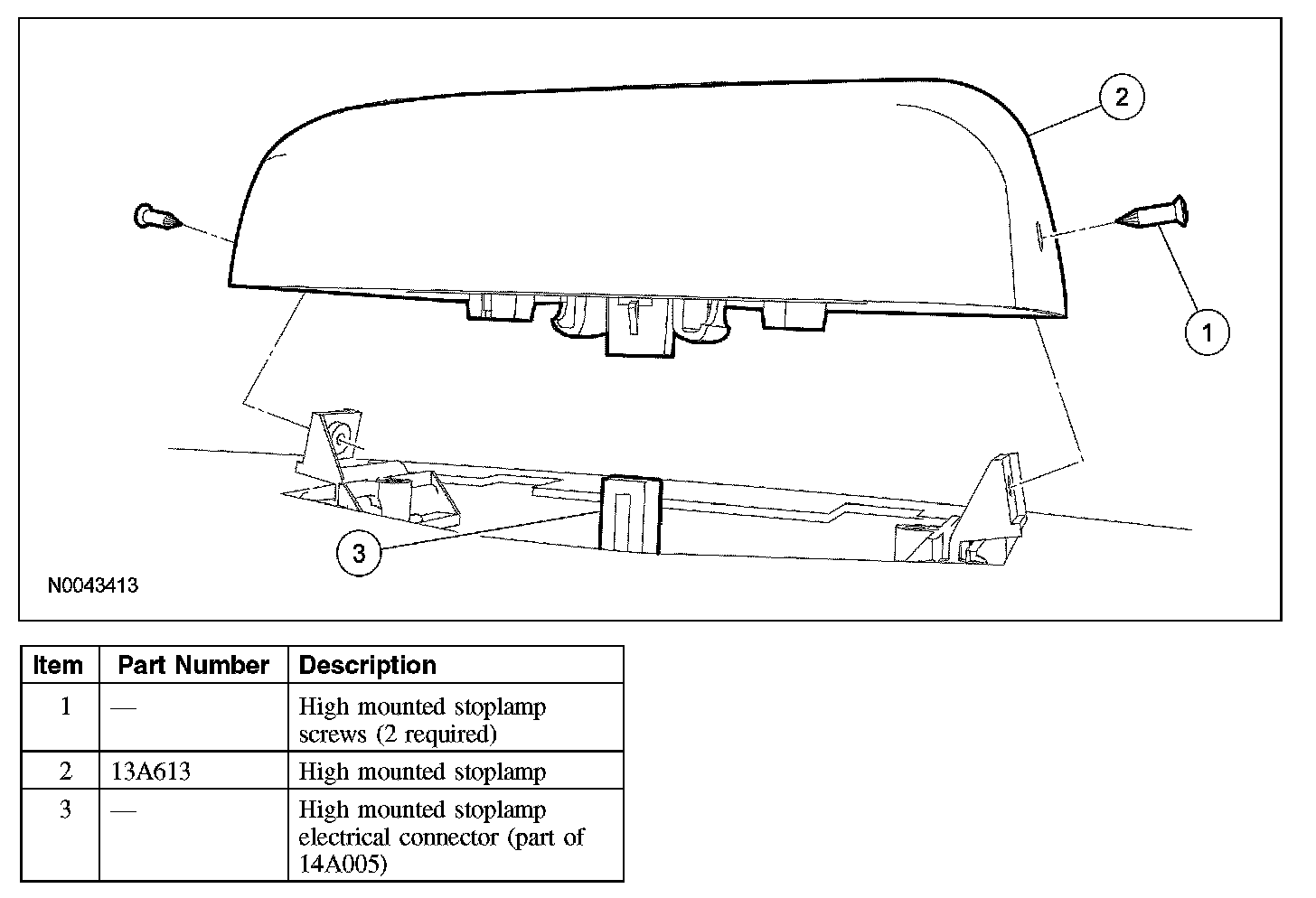

HIGH MOUNTED STOPLAMP







Removal and Installation
1. Remove the 2 screws and the high mounted stoplamp.
- Disconnect the electrical connector.

2. To install, reverse the removal procedure.
