Test E: Electronic Pressure Control Solenoid (PCB)
Test E: Electronic Pressure Control Solenoid (PCB)
PINPOINT TEST E: ELECTRONIC PRESSURE CONTROL SOLENOID (PCB)
E1-E3:
E3 (Continued)-E5:

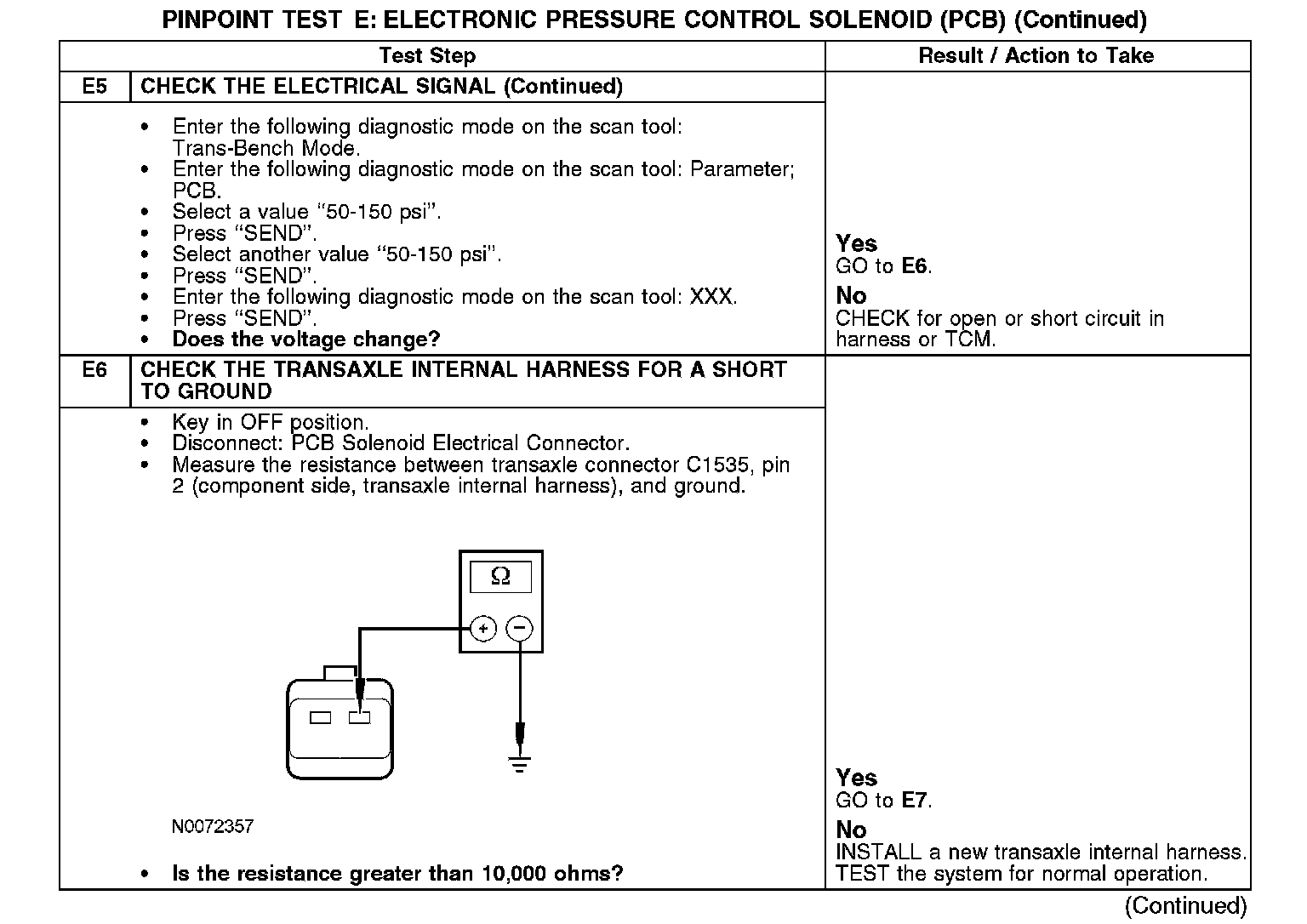

E5 (Continued)-E6:
E7 (Continued)-E9:
