Test B: The Anti-Theft System Does Not Arm/Disarm - Using The Remote Keyless Entry (RKE) Transmitter

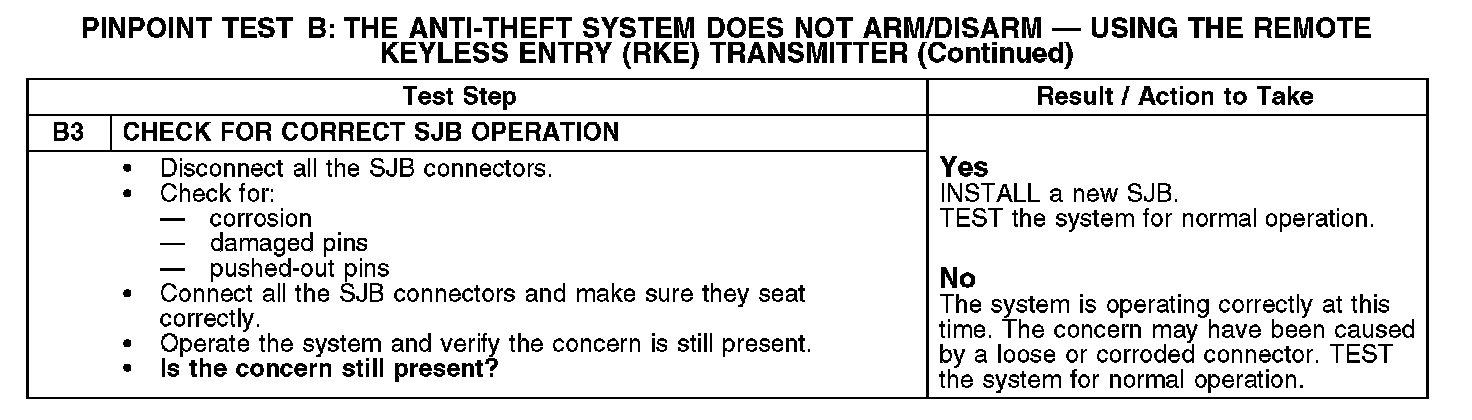

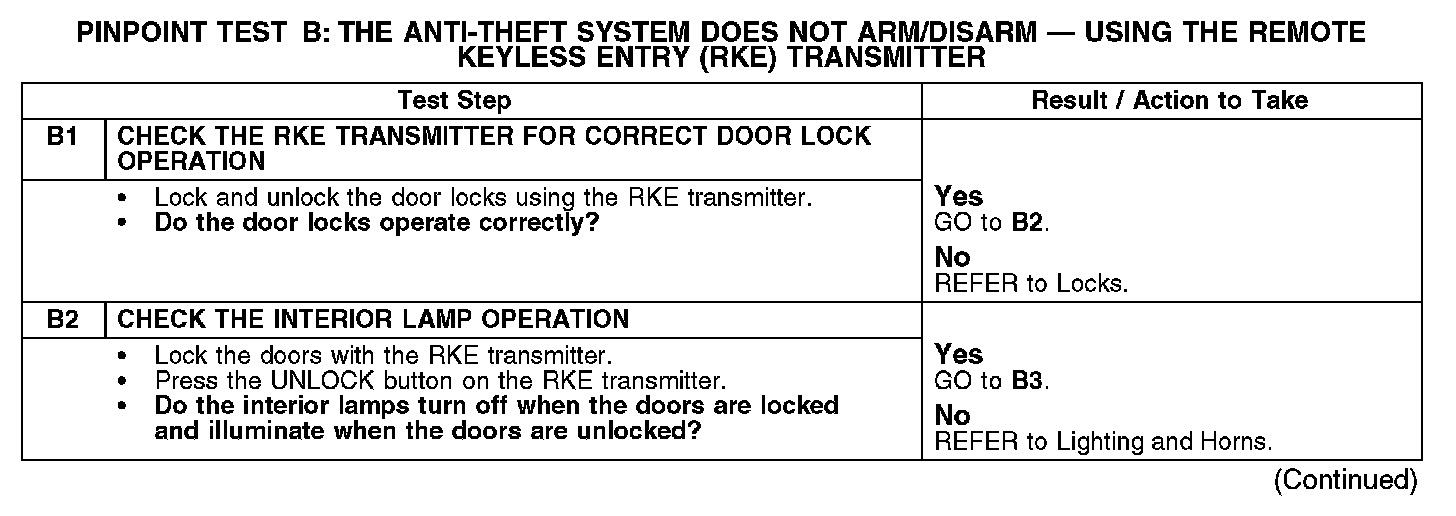

PINPOINT TEST B: THE ANTI-THEFT SYSTEM DOES NOT ARM/DISARM - USING THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTER

Normal Operation
The smart junction box (SJB) receives lock/unlock commands from the remote keyless entry (RKE) transmitter. The SJB then arms/disarms the perimeter alarm system.

This pinpoint test is intended to diagnose the following:
- RKE transmitter
- SJB
