Transmission Speed Sensor: Service and Repair

Output Shaft Speed (OSS) Sensor

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the OSS electrical connector.

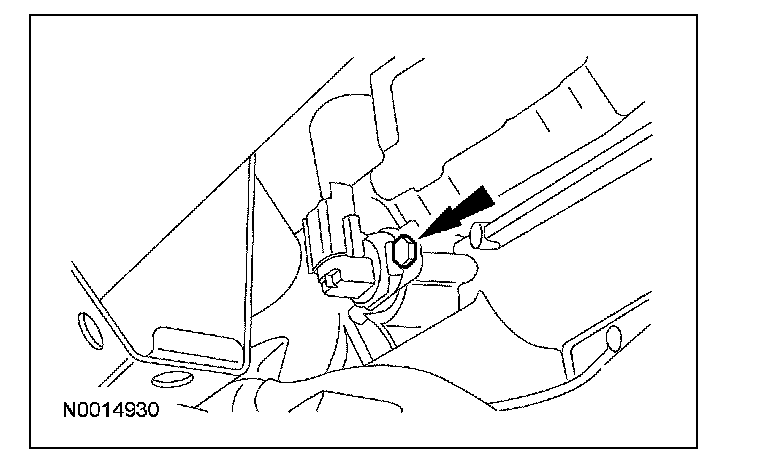

3. Remove the OSS sensor bolt, then remove OSS sensor.
^ To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
