Diagnostic Trouble Code Tests and Associated Procedures

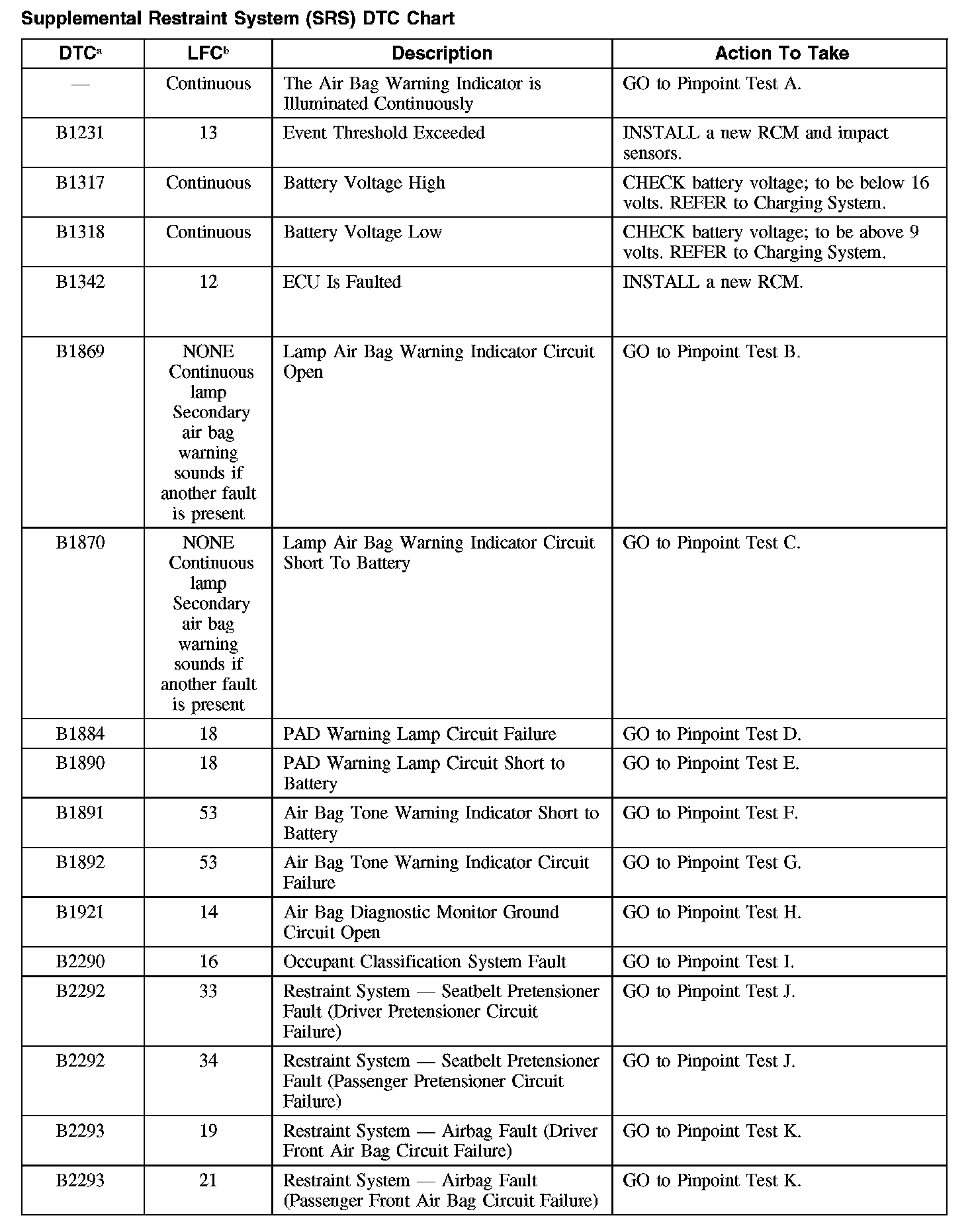

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DTC CHART

While the LFCs are an indication of a general concern in the passive restraints system, the DTCs are more specific. The DTCs can be retrieved from the restraints control module (RCM) with a scan tool via the data link connector (DLC).
