TR3650 Manual Transaxle/Transmission

Countershaft Bearing

Special Tool(s):

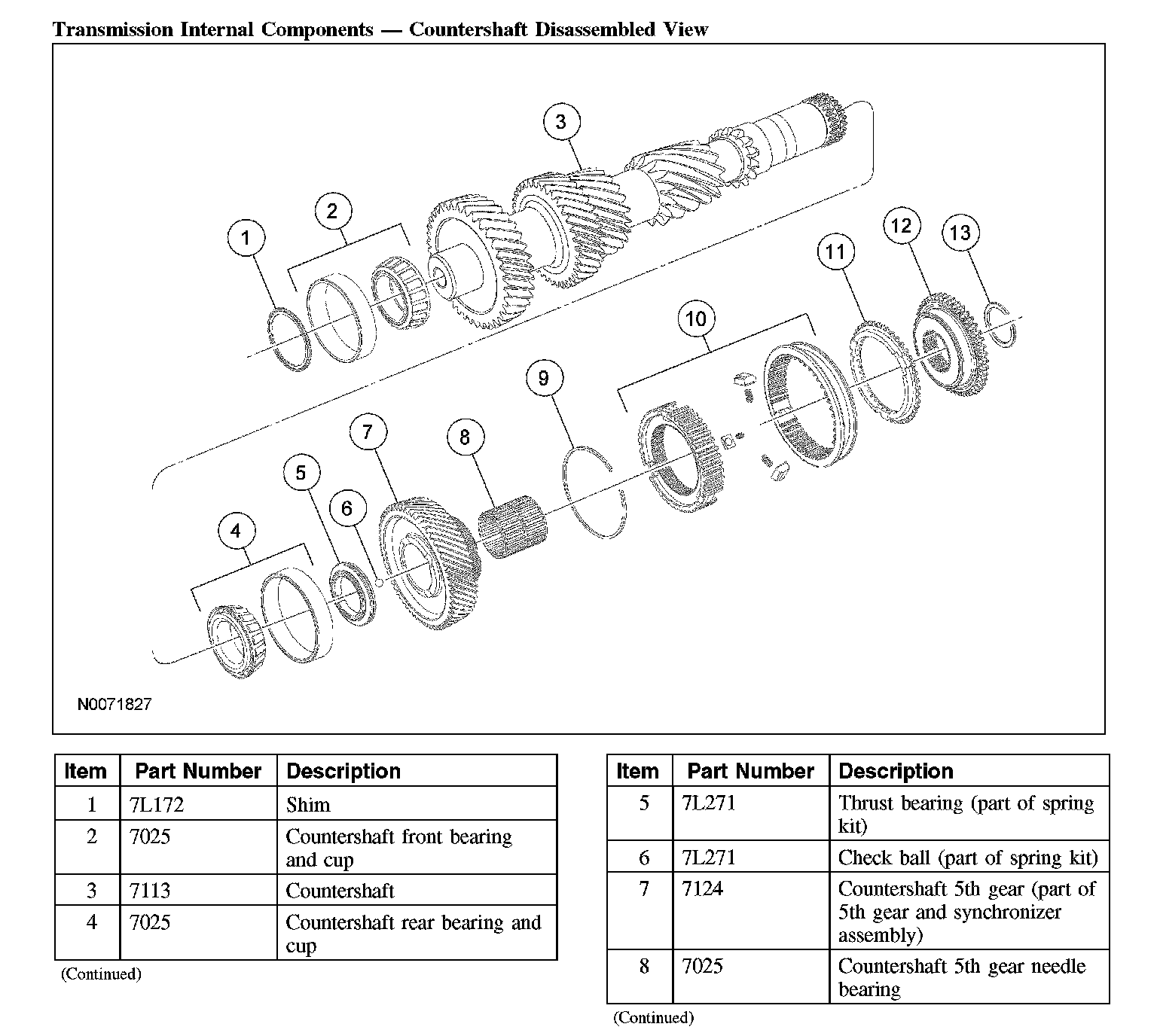

Transmission Internal Components - Countershaft Disassembled View (Part 1):

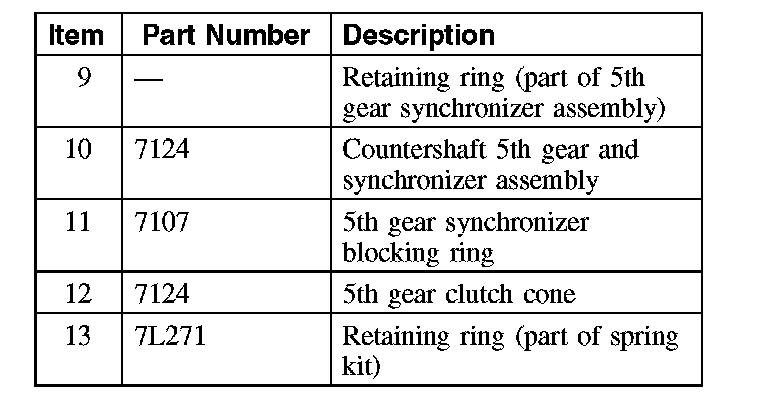

Transmission Internal Components - Countershaft Disassembled View (Part 2):

Disassembly and Assembly
1. Cut the outer cage, then remove the outer cage and rollers.





2. Using the special tool and a press, remove the inner bearing.





3. Using the special tool, install the new countershaft bearing.
