Test C: The Subwoofer Is Inoperative/Does Not Operate Correctly - Front Subwoofer

PINPOINT TEST C: THE SUBWOOFER IS INOPERATIVE/DOES NOT OPERATE CORRECTLY - FRONT SUBWOOFER

Normal Operation
The front subwoofers are powered by a separate subwoofer amplifier for each subwoofer speaker. The enable/clip circuit 173 (DG/VT) carries out 2 functions: to turn on the subwoofer amplifiers, and monitor an overload condition to the subwoofer amplifier. In the event of an overload, the audio control module (ACM) clips the audio output signal to the subwoofer amplifiers (heard as distortion). The front subwoofer amplifiers receive voltage through circuit 829 (WH/VT), and ground through circuit 1204 (BK/OG).

This pinpoint test is intended to diagnose the following:
- Fuse
- Wiring, terminals or connectors
- Subwoofer amplifier
- Subwoofer
- ACM

C1-C3:

C3-C6:

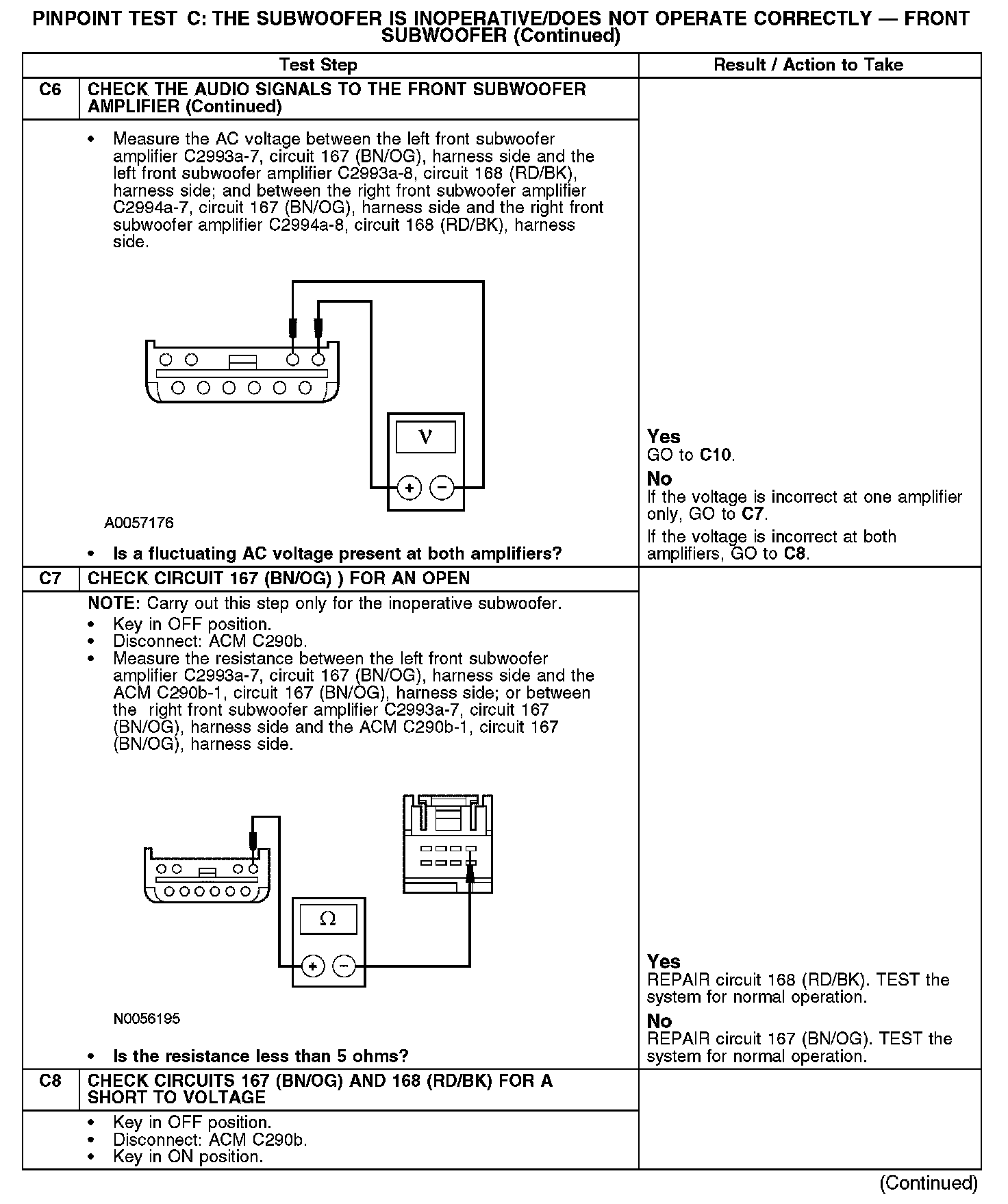

C6-C8:

C8-C10:

C10-C12:

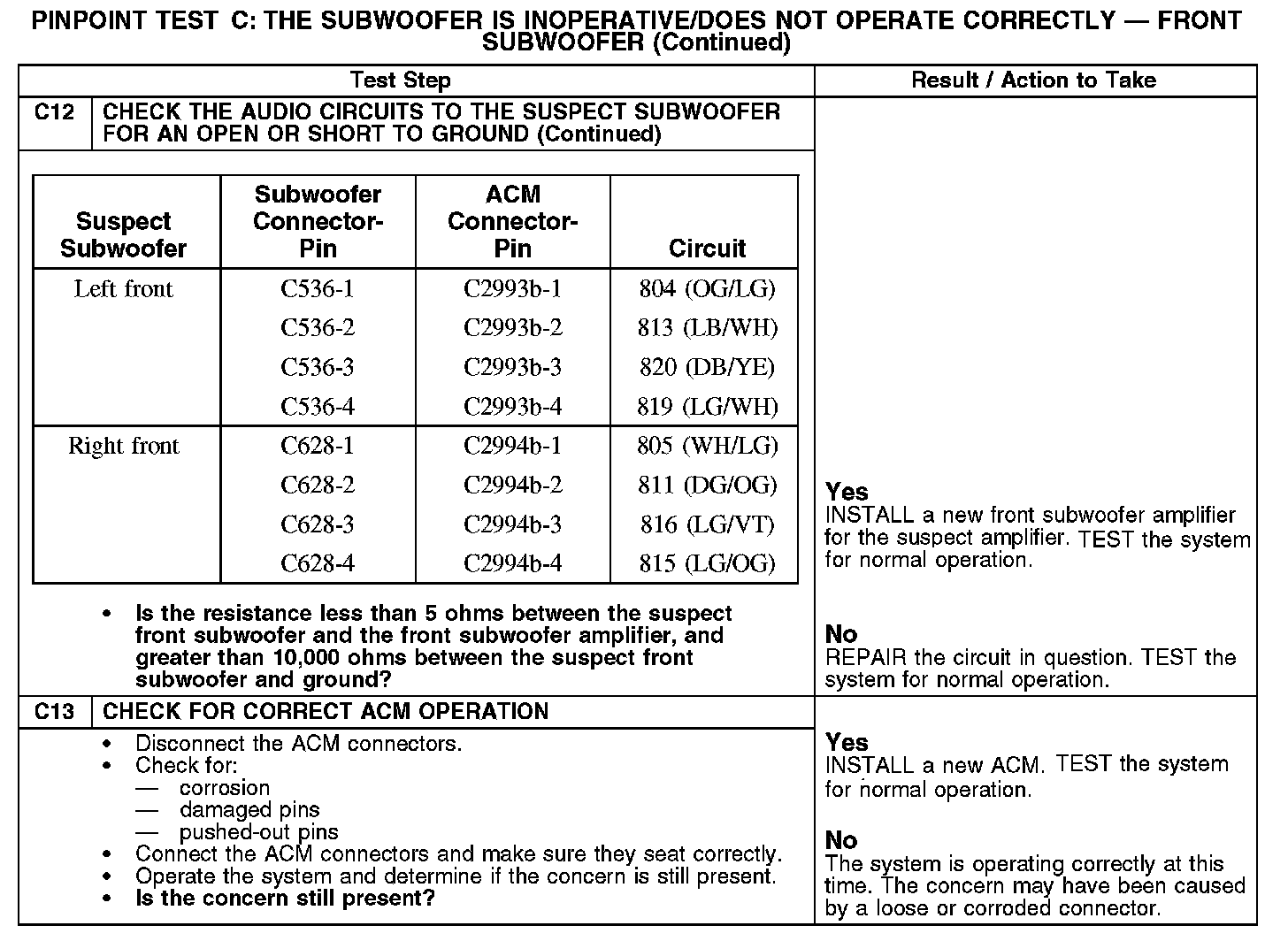

C12-C13:
