Grille: Service and Repair

RADIATOR GRILLE







Removal and Installation
1. Remove the front bumper cover.

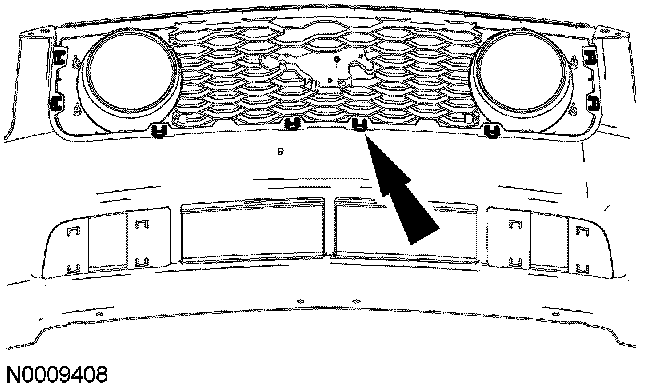

2. Release the radiator grille retaining clips from the front bumper cover and remove the radiator grille.







3. To install, reverse the removal procedure.
