Lumbar Assembly
LUMBAR ASSEMBLYExploded View
Front Seat Backrest (Part 1):
Front Seat Backrest (Part 2):
Driver Power Front Seat Cushion:

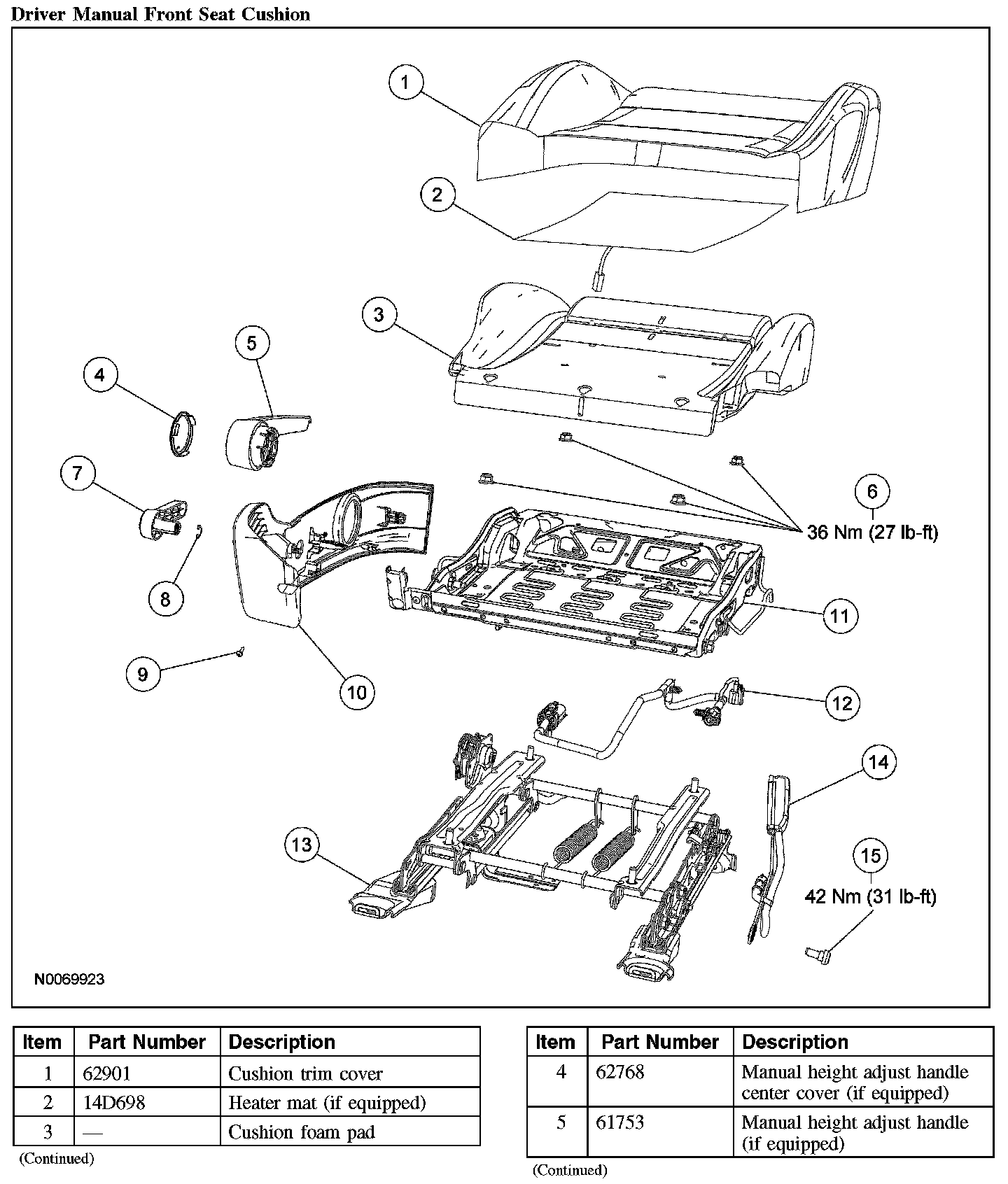

Driver Manual Front Seat Cushion:

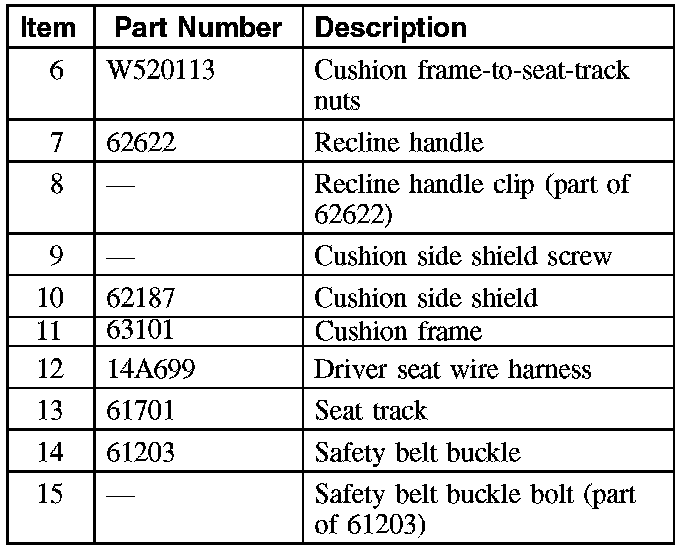

Driver Manual Front Seat Cushion (Part 2):

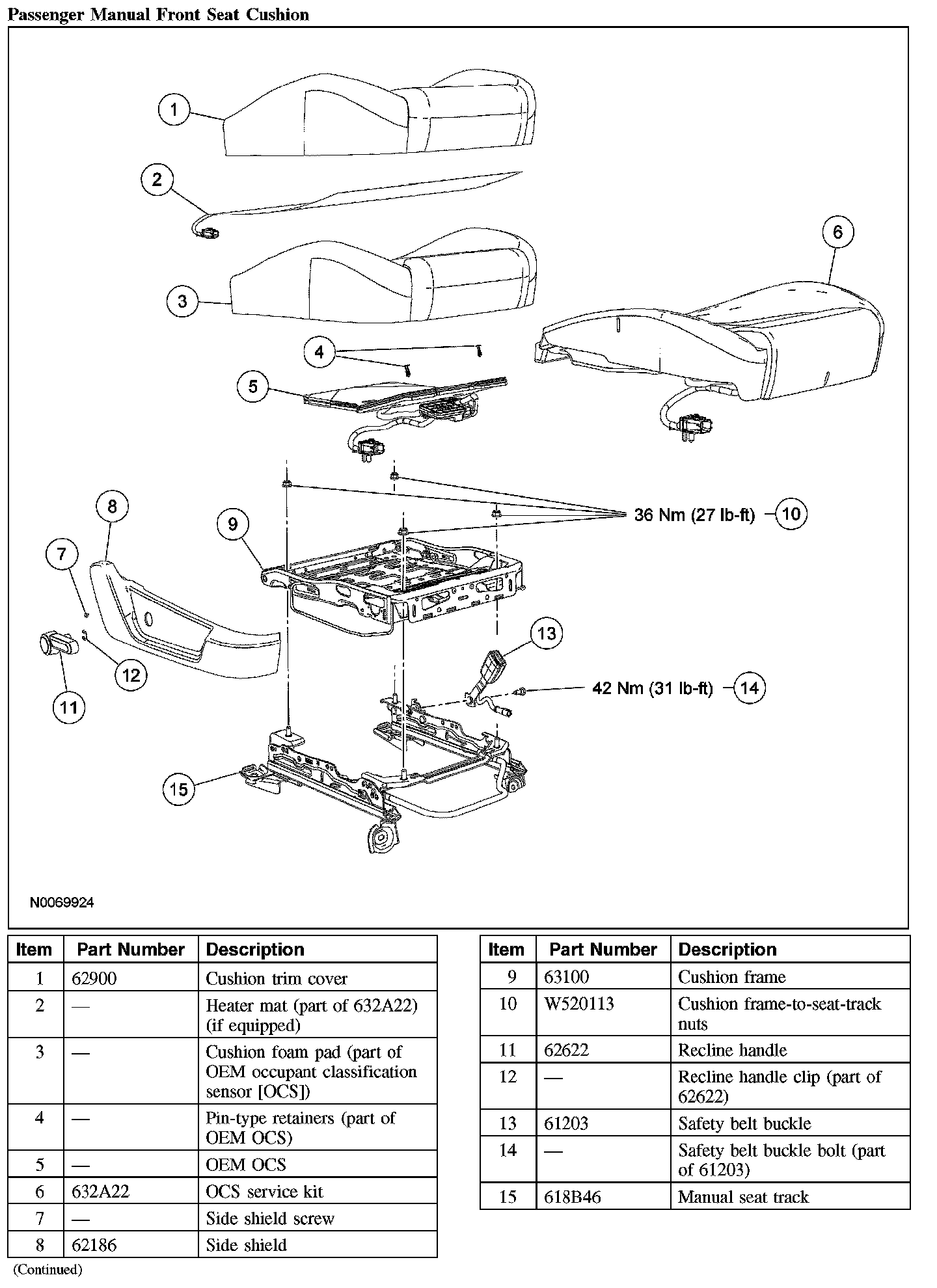

Passenger Manual Front Seat Cushion:

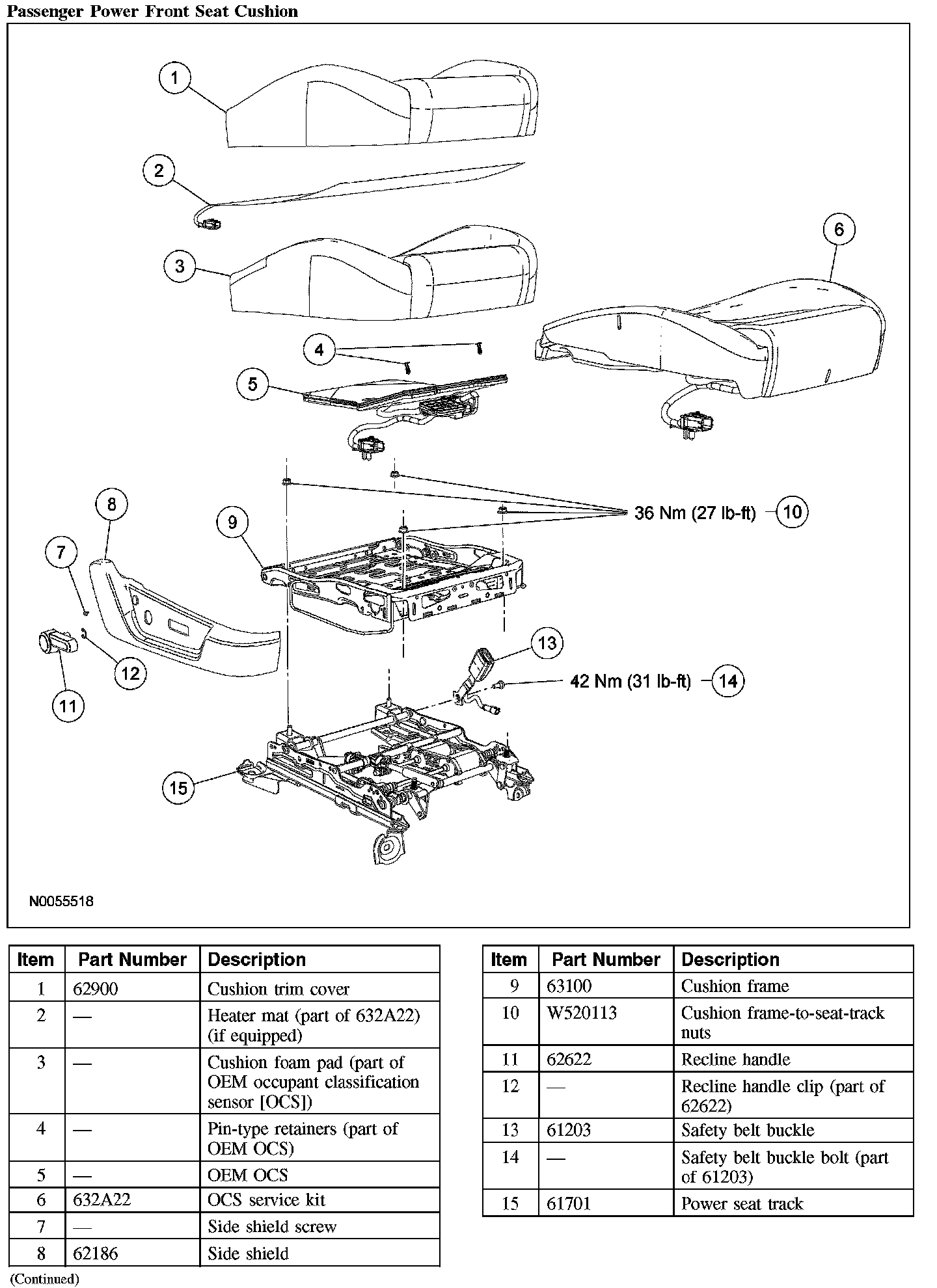

Passenger Power Front Seat Cushion:
Removal and Installation
NOTE:
- The air bag warning indicator illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
1. Remove the seat.
2. Remove the front seat backrest.
3. Remove the pin-type retainers attaching the backrest trim cover to the inboard and outboard recliners.
4. Release the J-clip at the back of the backrest trim cover and separate the hook-and-loop.
5. Invert the backrest trim cover to expose the lumbar assembly.
- Note the wire harness routing for installation.
6. Disconnect the power lumbar electrical connector. Un-hook the 4 lumbar hooks (2 shown) from the backrest frame and remove the lumbar assembly.
7. To install, reverse the removal procedure.
8. Install the front seat backrest.
9. Install the seat
10. Repower the SRS.
