Front

Disc Brake System - Exploded View

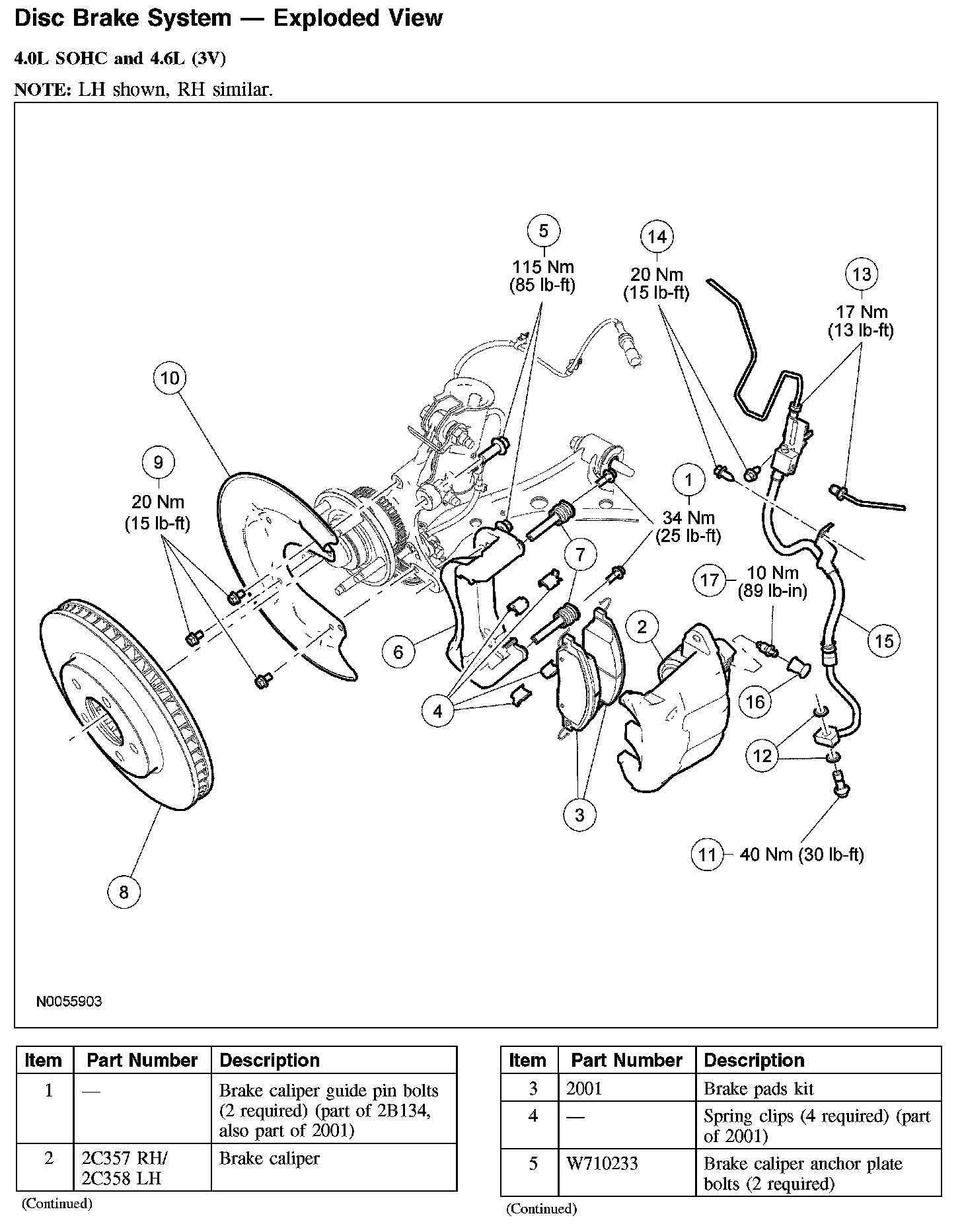

Disc Brake System - Exploded View 4.0L SOHC And 4.6L (3V) (Part 1):

Disc Brake System - Exploded View 4.0L SOHC And 4.6L (3V) (Part 2):

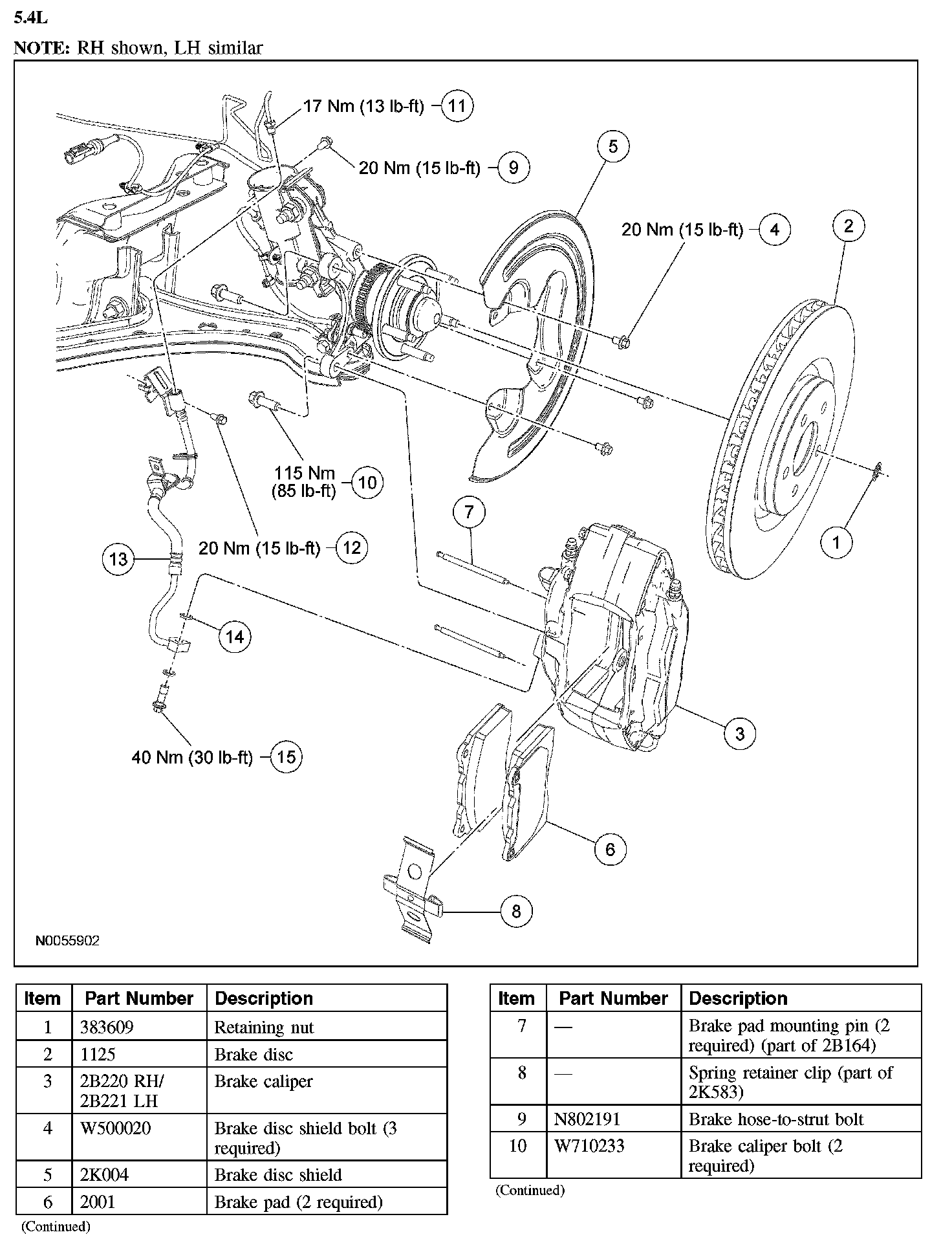

Disc Brake System - Exploded View 5.4L (Part 1):

Disc Brake System - Exploded View 5.4L (Part 2):

1. NOTE: A revised part, with the same base part number, has been released for the RH brake hose. When installing a new RH brake hose, position the anti-rotation tab on the mounting bracket toward the front of the vehicle and install the bolt with the head toward the rear of the vehicle.
