Rear Drive Axle/Differential - Ford 7.5-Inch Ring Gear
Rear Drive Axle/Differential - Ford 7.5-Inch Ring Gear

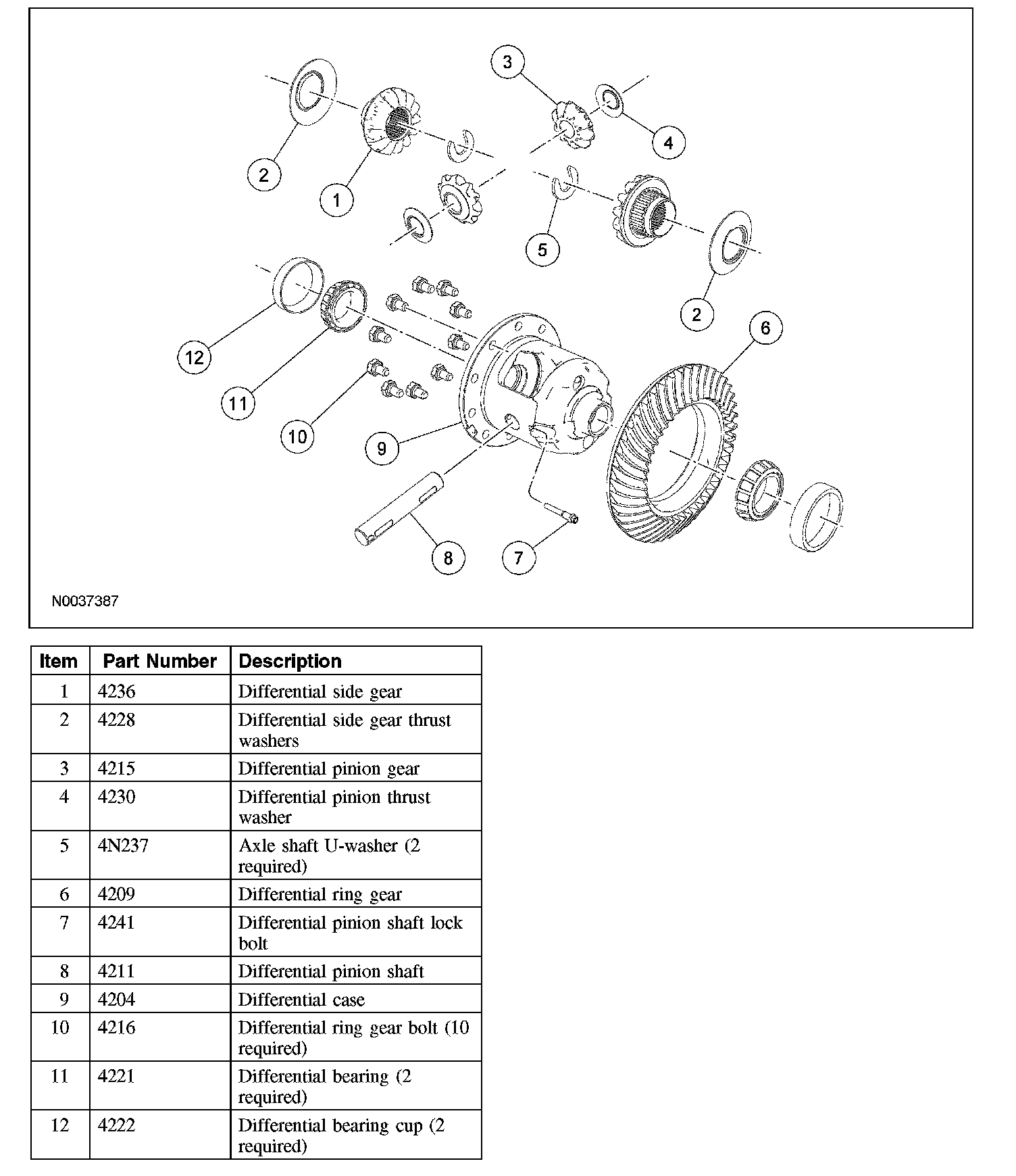

Differential Case and Ring Gear
