Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2008
>>
Mustang V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Mechanical Diagrams
>>
Exhaust System
Exhaust System
Exhaust System

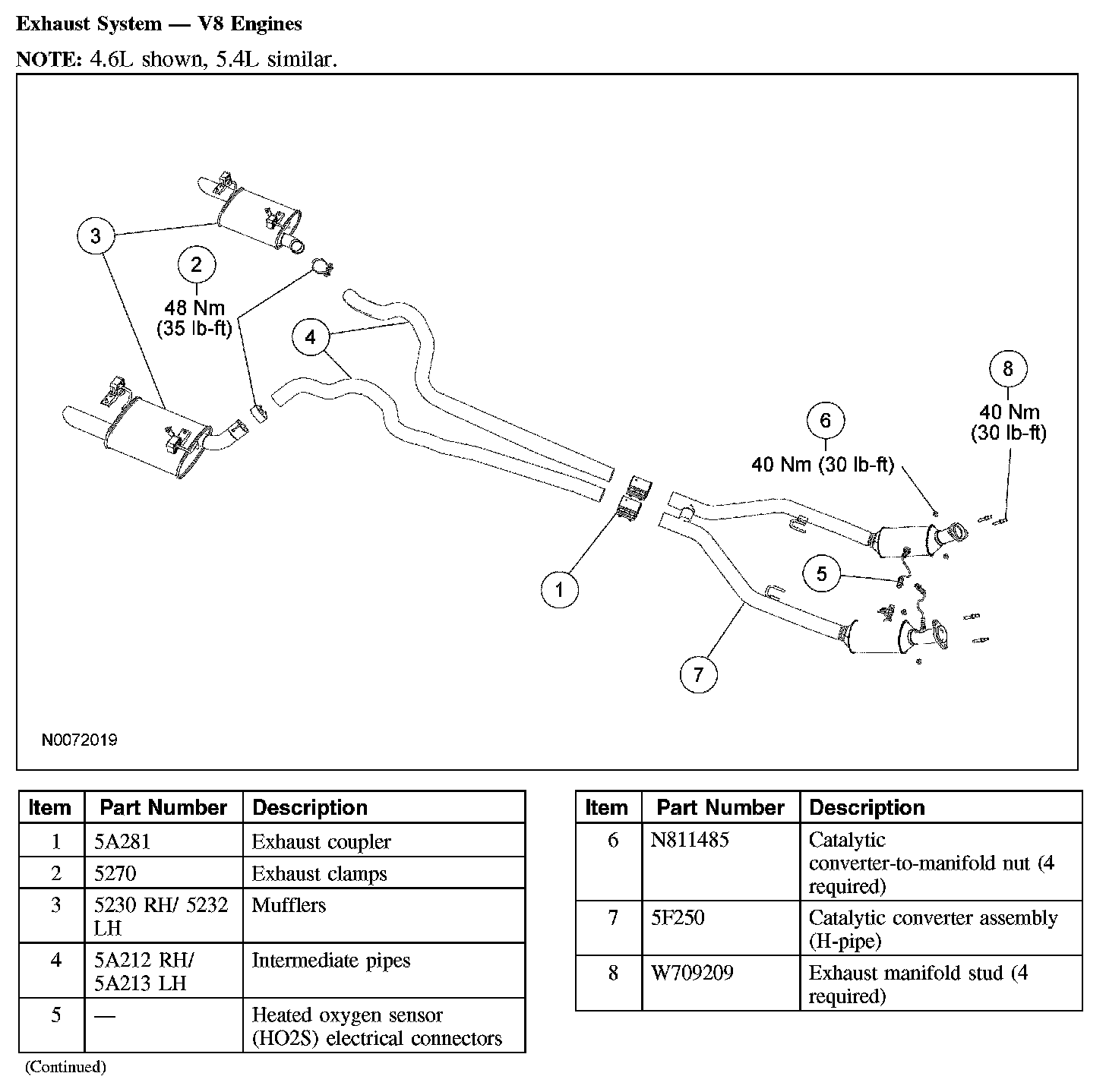

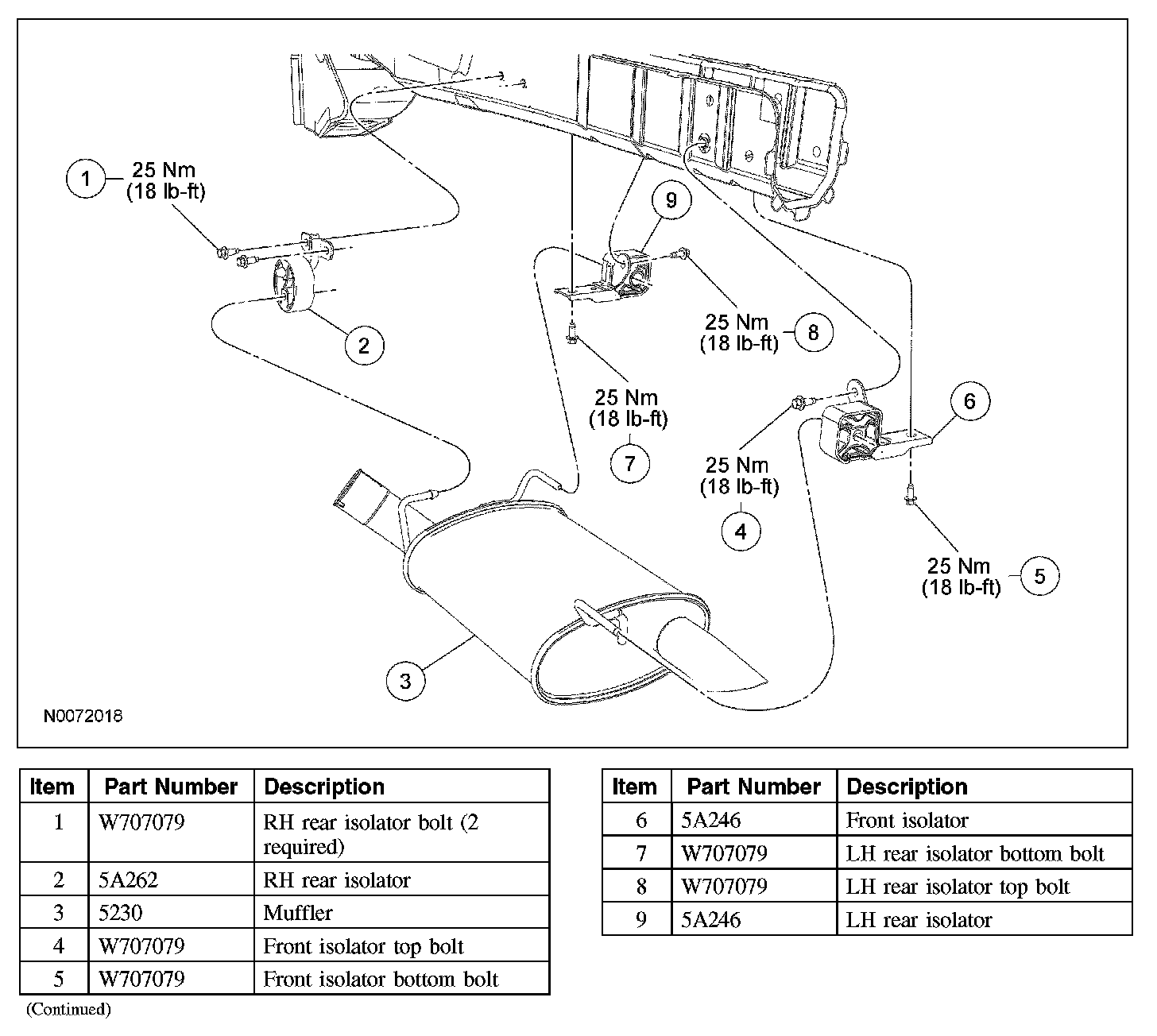

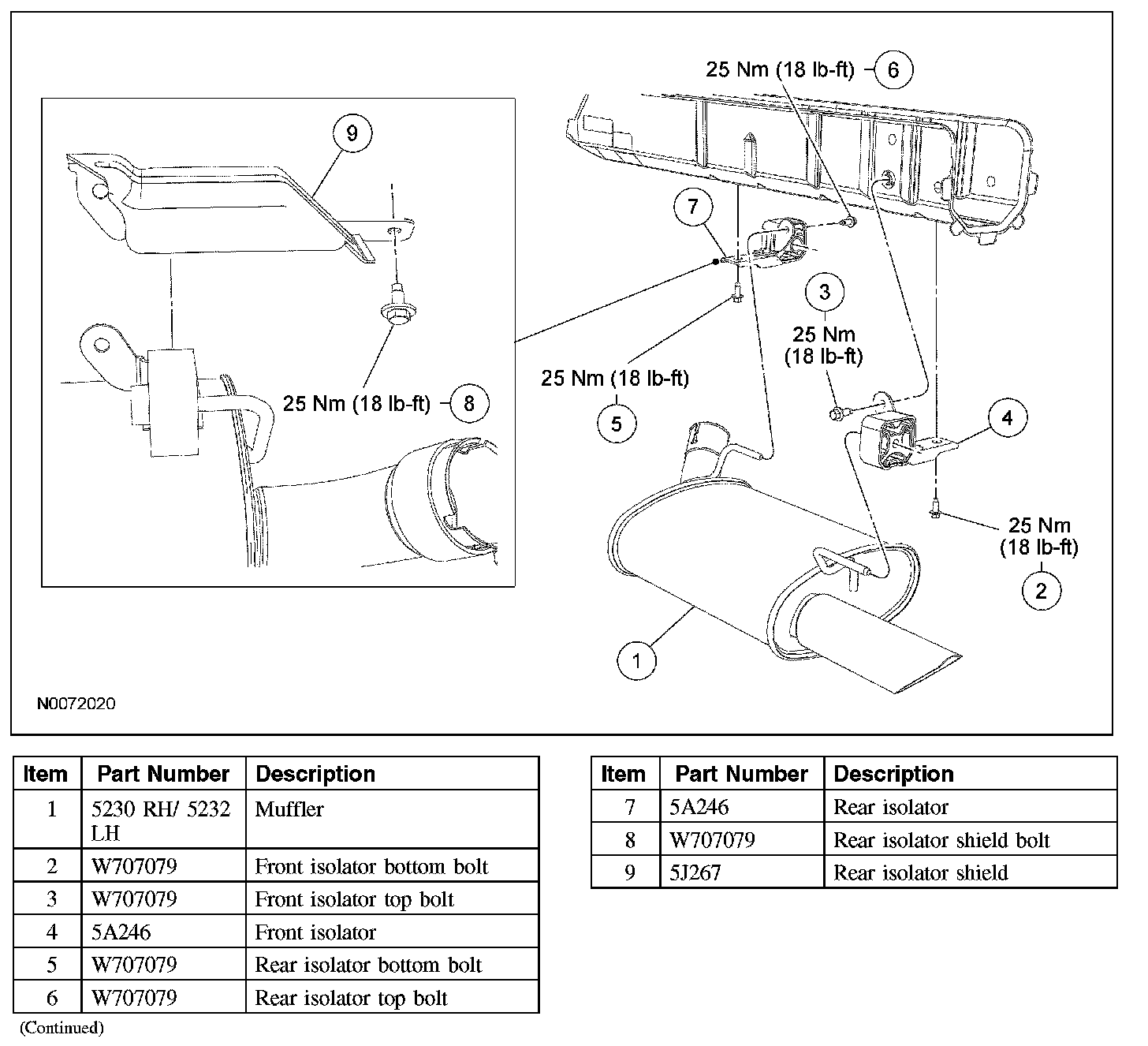

- Exploded View
