Air Bag Deactivation Indicator: Service and Repair

PASSENGER AIR BAG DEACTIVATION (PAD) INDICATOR







Removal and Installation

NOTE:
- The air bag warning indicator illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
- The passenger air bag deactivation indicator is part of the hazard switch/traction control switch assembly.

1. Depower the SRS.

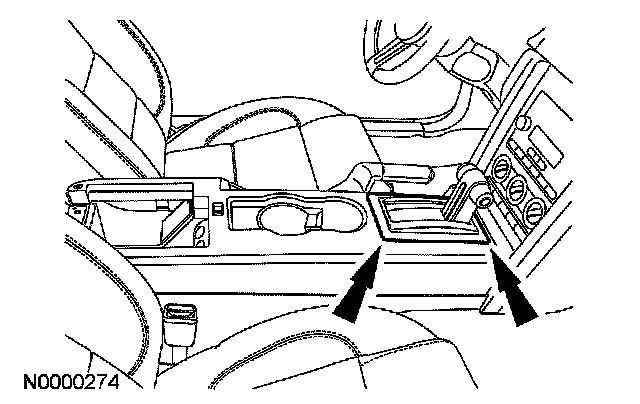

2. Remove the console shifter bezel.







3. Remove the 2 screws and the center console top finish panel.







4. NOTE: Passenger side center console kick panel shown, driver side similar.

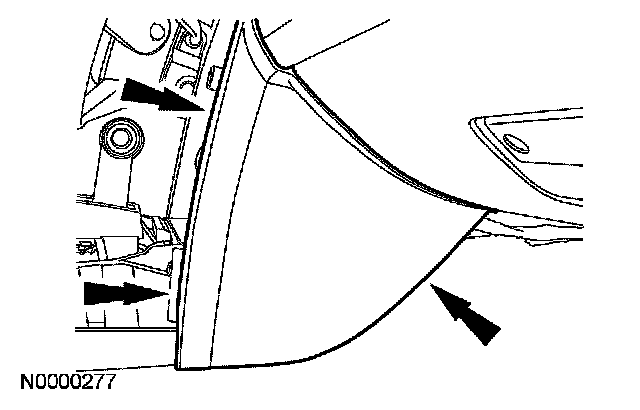

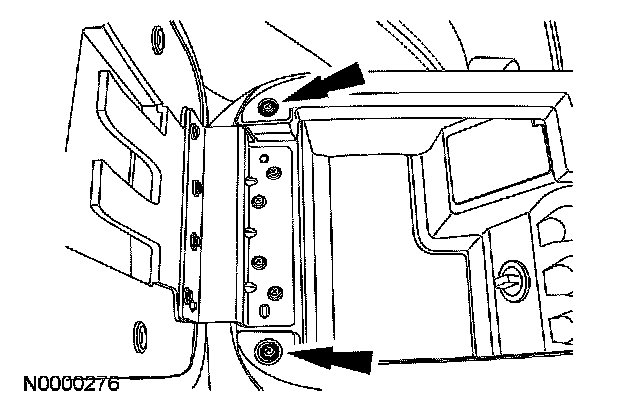

Remove the driver and passenger center console kick panels.

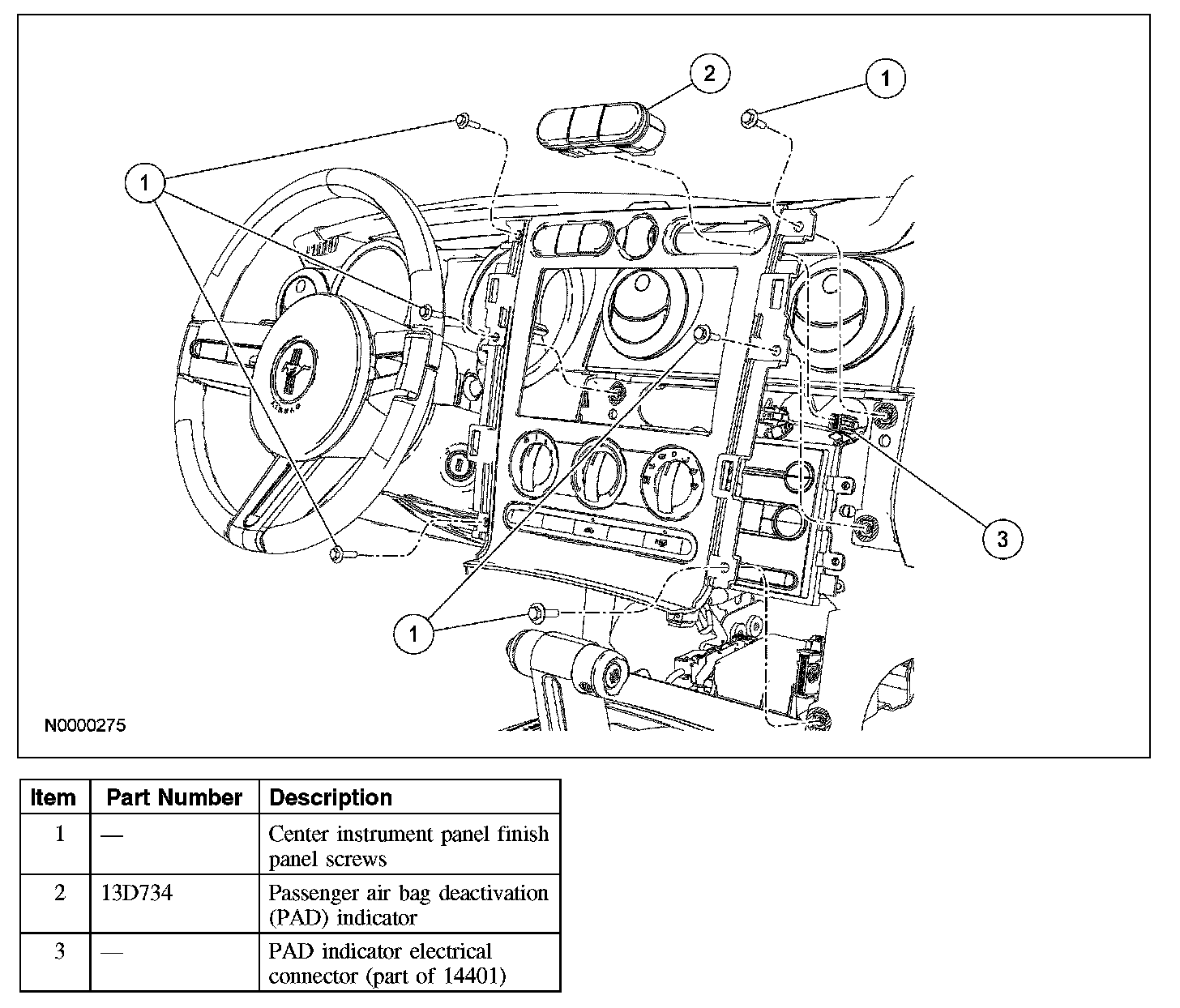

5. Remove the 6 screws and position out the center instrument panel finish panel.
6. Disconnect the passenger air bag deactivation (PAD) indicator electrical connector.
7. Release the 4 tabs (2 upper and 2 lower) on the PAD indicator and remove it from the center instrument panel finish panel.
8. To install, reverse the removal procedure.
9. Repower the SRS.
