Instrument Cluster (IC)

INSTRUMENT CLUSTER (IC)







Removal and Installation

1. NOTE: If installing a new instrument cluster (IC), it is necessary to upload the instrument cluster (IC) configuration information to the scan tool.

Depower the supplemental restraint system (SRS).

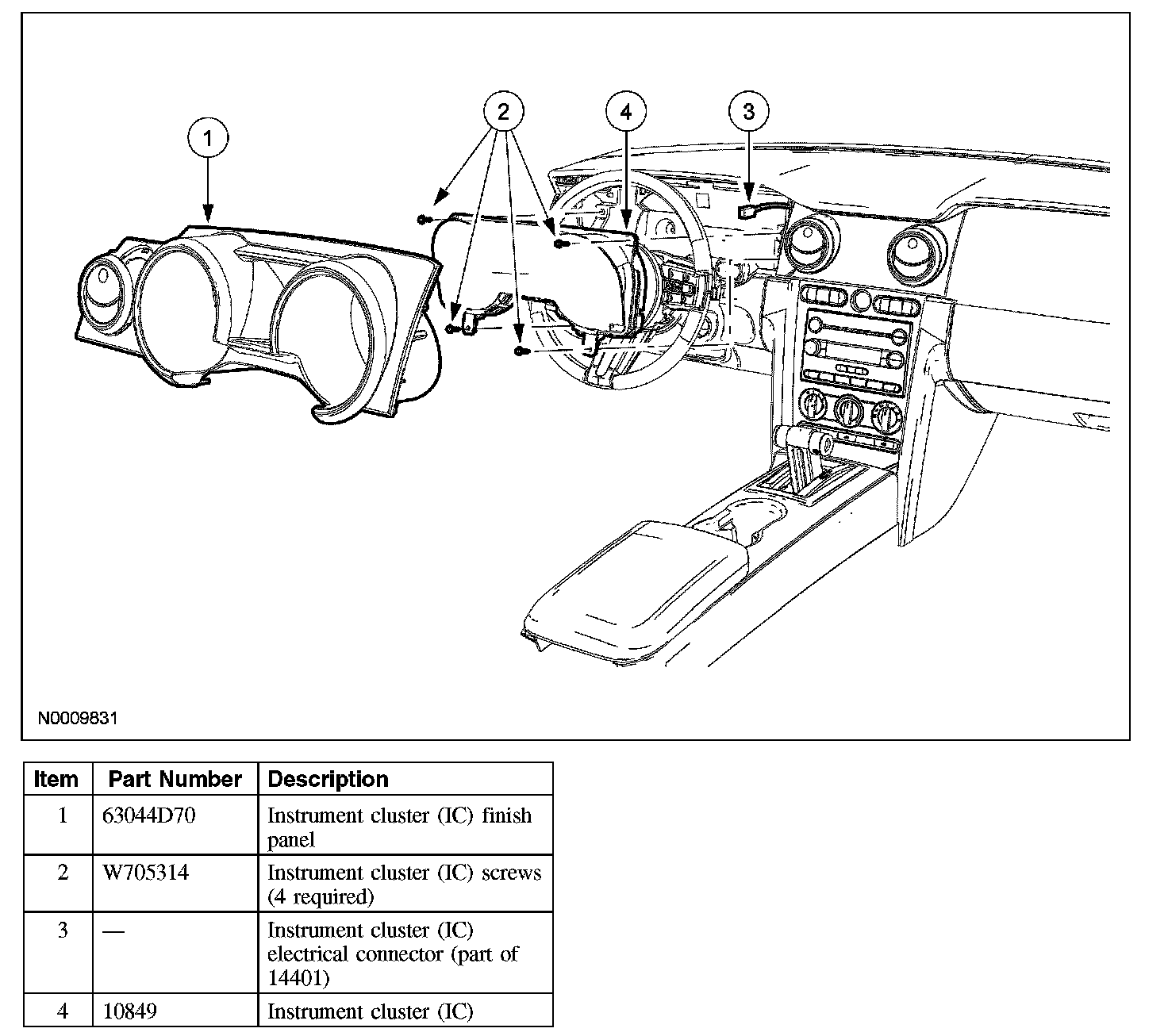

2. NOTE: The instrument cluster (IC) finish panel is held in place with retaining clips that are attached to the bezel.

Remove the instrument cluster (IC) finish panel.

3. Remove the 4 screws and the instrument cluster (IC).
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
- If a new instrument cluster (IC) was installed, download the instrument cluster (IC) configuration information from the scan tool into the new instrument cluster (IC).
