Instrument Cluster (IC) Lens
INSTRUMENT CLUSTER (IC) LENSRemoval and Installation
1. Remove the instrument cluster (IC).

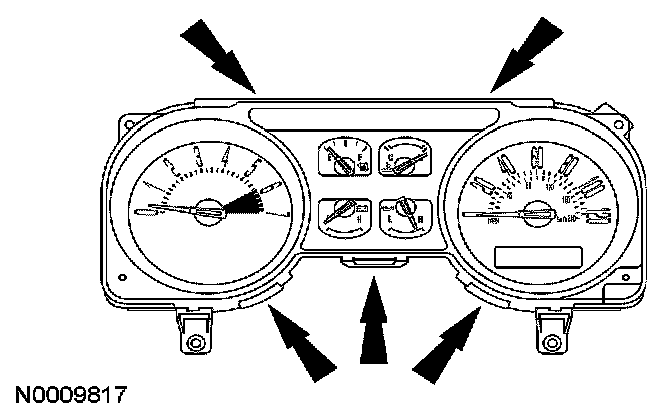

2. Release the retaining tabs and remove the instrument cluster (IC) lens.
3. To install, reverse the removal procedure.
Removal and Installation
1. Remove the instrument cluster (IC).
2. Release the retaining tabs and remove the instrument cluster (IC) lens.
3. To install, reverse the removal procedure.
