Center Mounted Brake Lamp: Service and Repair

HIGH MOUNTED STOPLAMP







Removal and Installation
1. Remove the decklid latch trim cover.

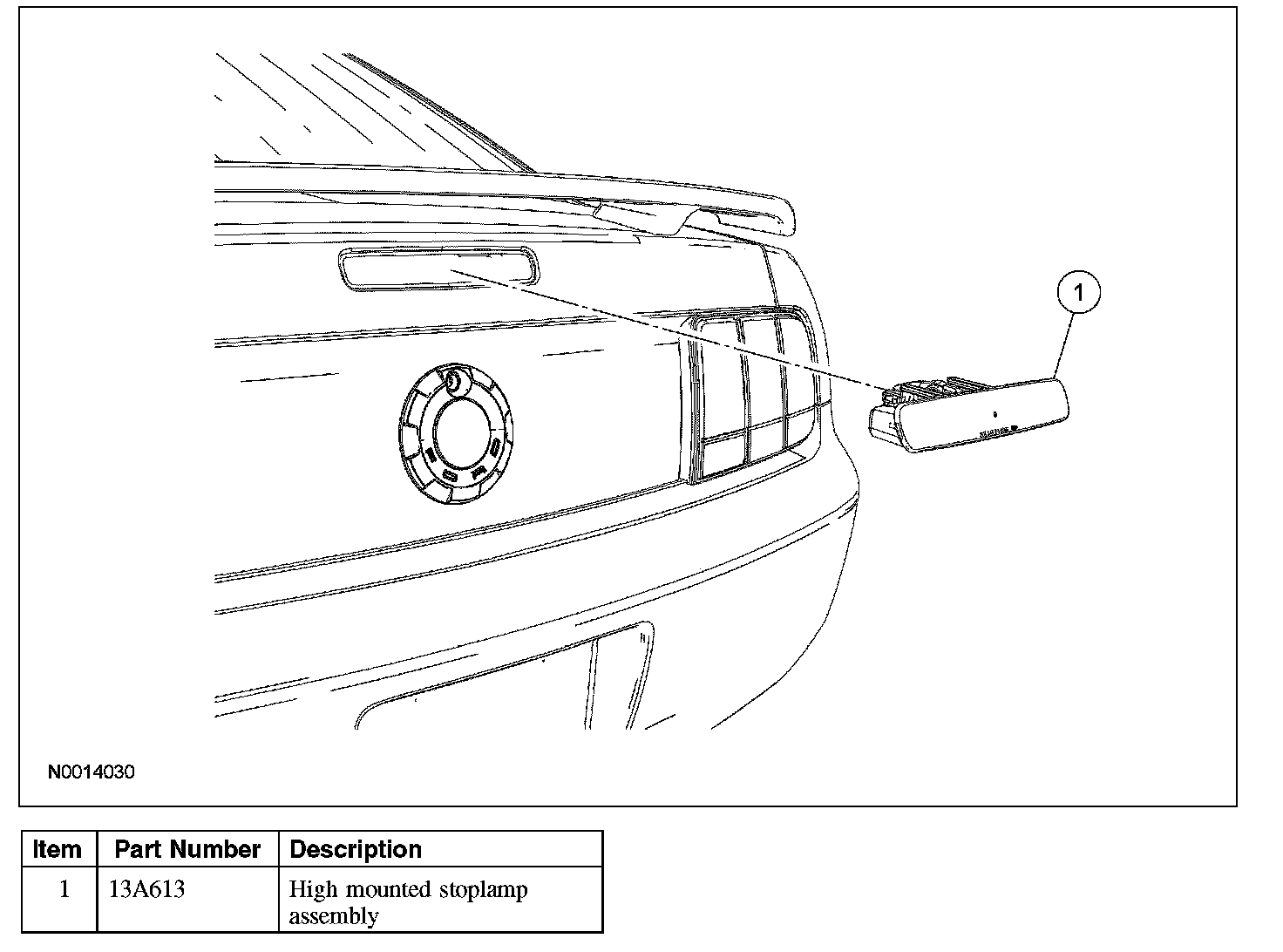

2. Release the locking tabs and remove the high mounted stoplamp assembly.
- Disconnect the electrical connector.







3. To install, reverse the removal procedure.
