Shift Solenoid, A/T

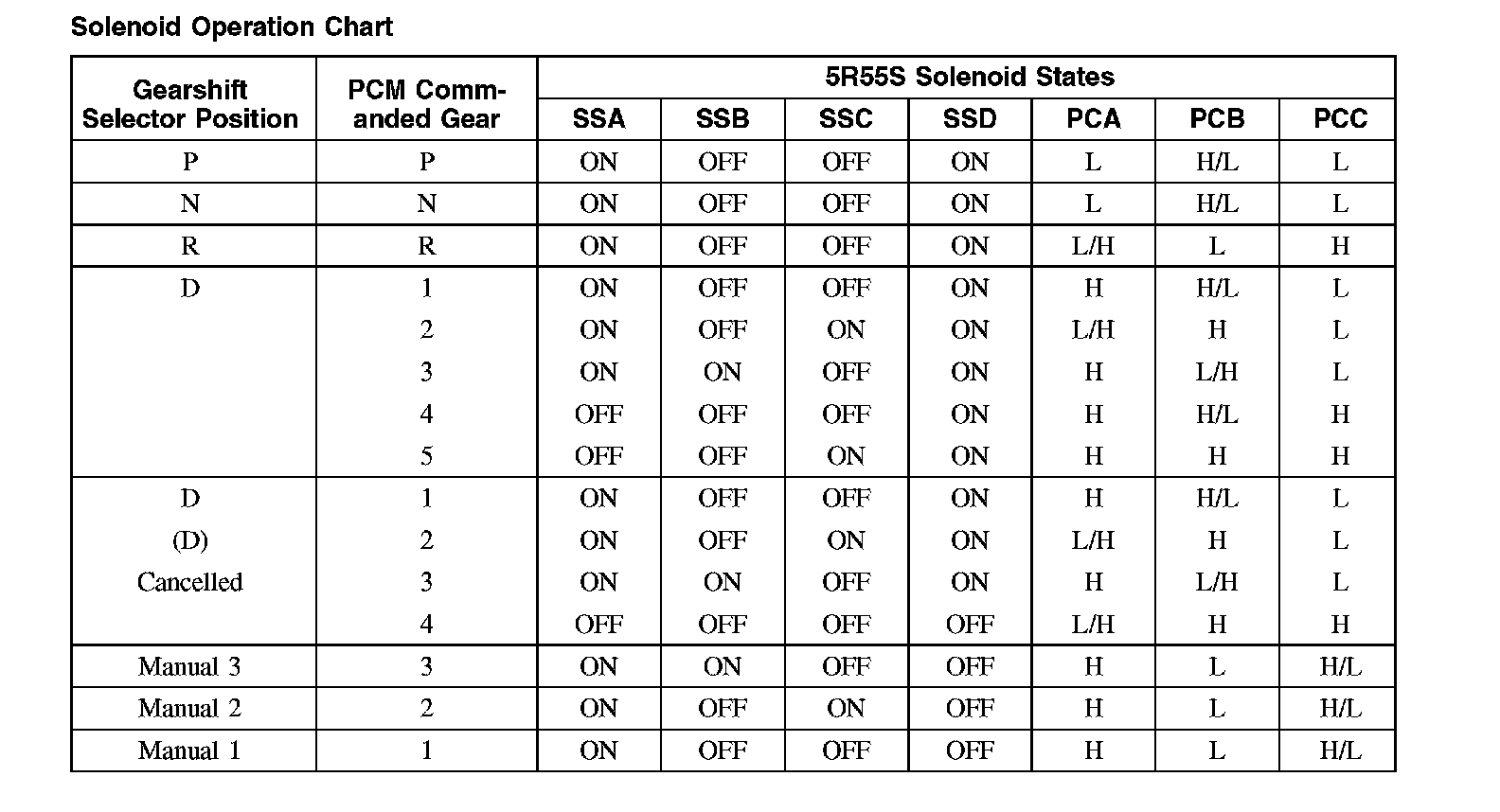

Solenoid Operation Chart

Solenoid Operation Chart (Part 1):




Solenoid Operation Chart (Part 2):
