Battery Tray

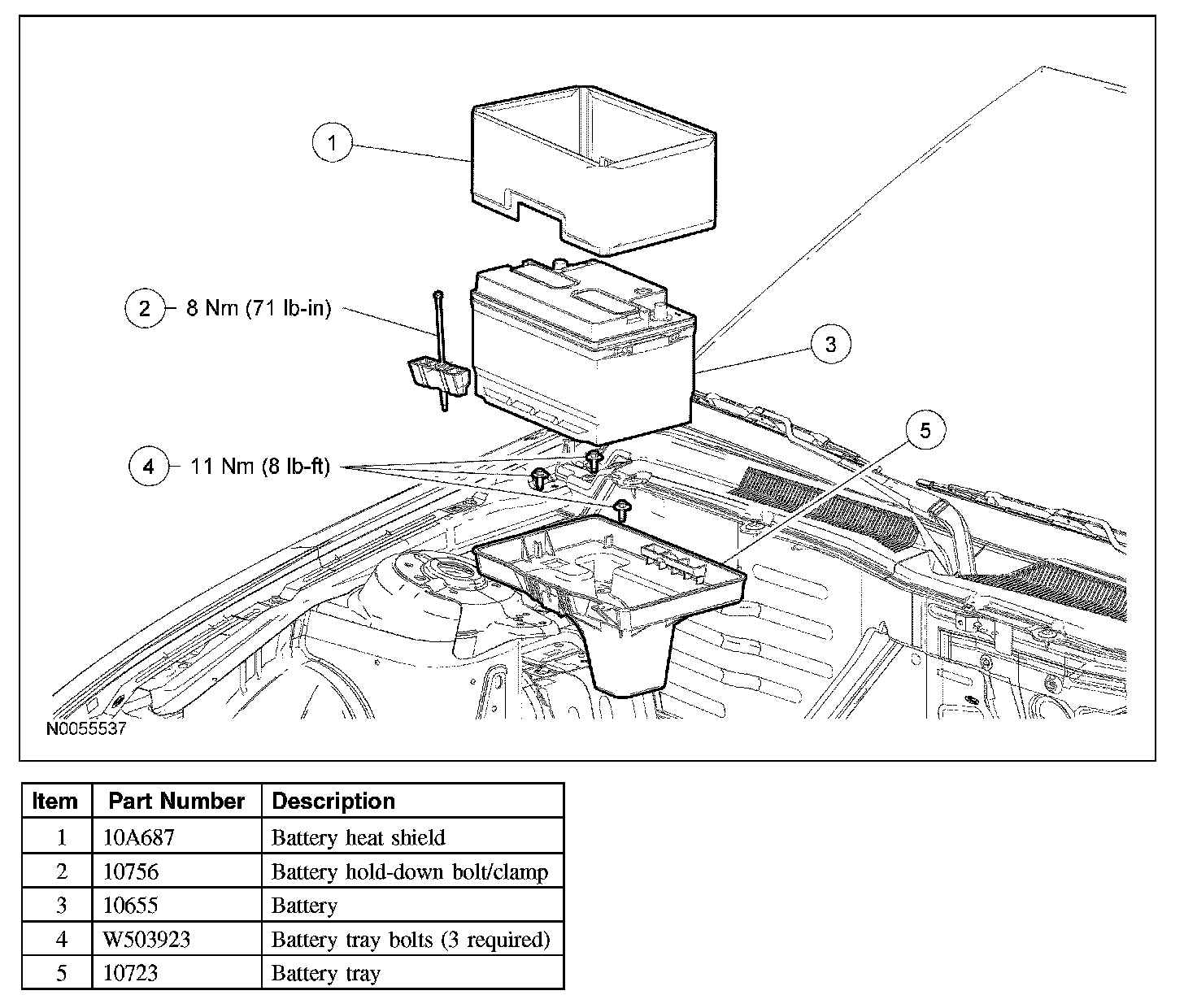

BATTERY TRAYExploded View
Removal and Installation
1. Remove the battery.
2. Remove the 3 bolts and the battery tray.
- To install, tighten to 11 Nm (8 lb-ft).
3. To install, reverse the removal procedure.
- For GT500 models, apply threadlock and sealer to the battery tray bolt threads.
