Body - Exterior Door Handle Not Flush/Loose/Rattles
TSB 07-16-708/20/07
EXTERIOR DOOR HANDLE NOT FLUSH IN THE CLOSED POSITION
FORD:
2005-2008 Mustang
ISSUE
Some 2005-2008 Mustang vehicles may exhibit an exterior door handle not flush in the closed position. This may result in a loose handle, rattle noise, hard to open, and/or door self locks when opening outside handle. (Figure 1)
ACTION
The concern is caused by pre-loading/biasing the exterior door handle actuating rod, the front door latch, or both. Follow the Service Procedure steps to correct the condition.
SERVICE PROCEDURE
1. Raise the door window glass to the full up position.
2. Remove the door trim panel. Refer to Workshop Manual (WSM), Section 501-05.
3. Position the watershield aside.
4. Raise the manual lock rod to the unlock position. (Figure 2)
5. Disconnect the exterior door handle actuating rod from the front door latch assembly.

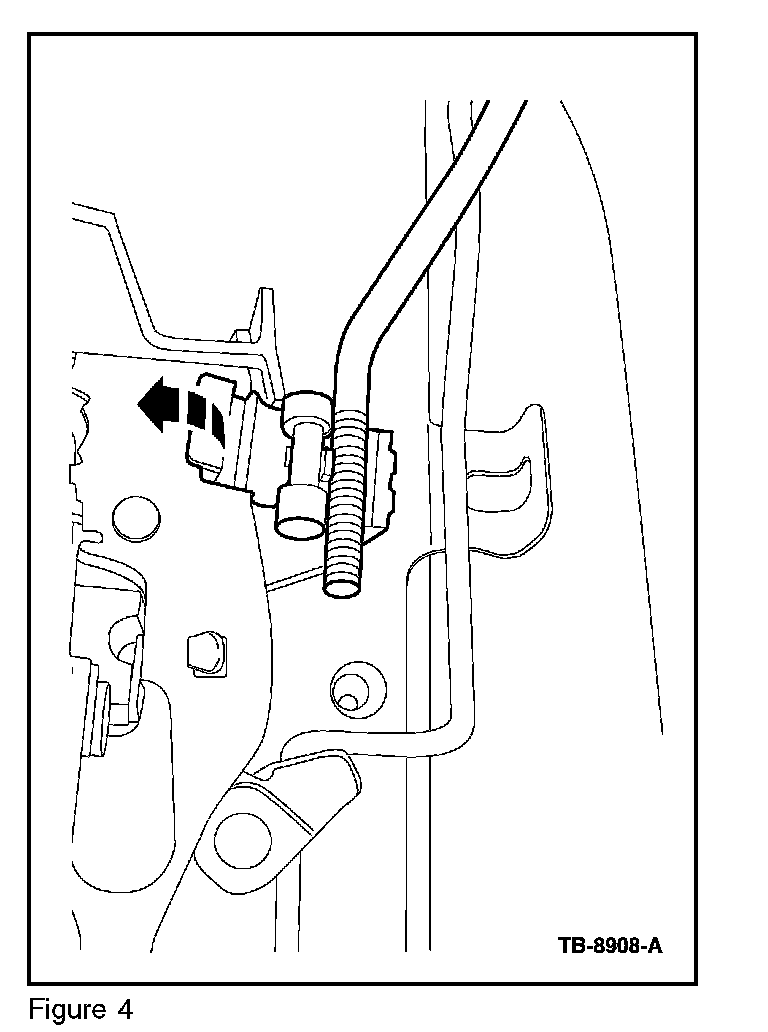

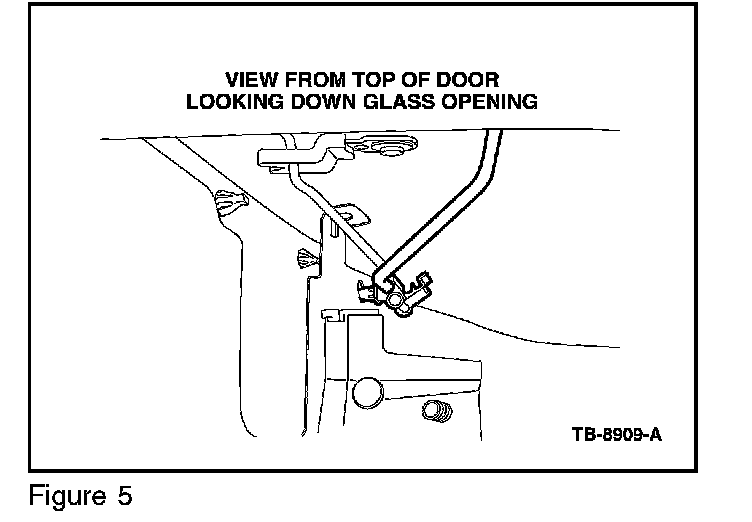

a. Open the retaining clip and disconnect the actuating rod. (Figures 3 through 5)
6. Reinstall the exterior door handle actuating rod back into the clip.
NOTE

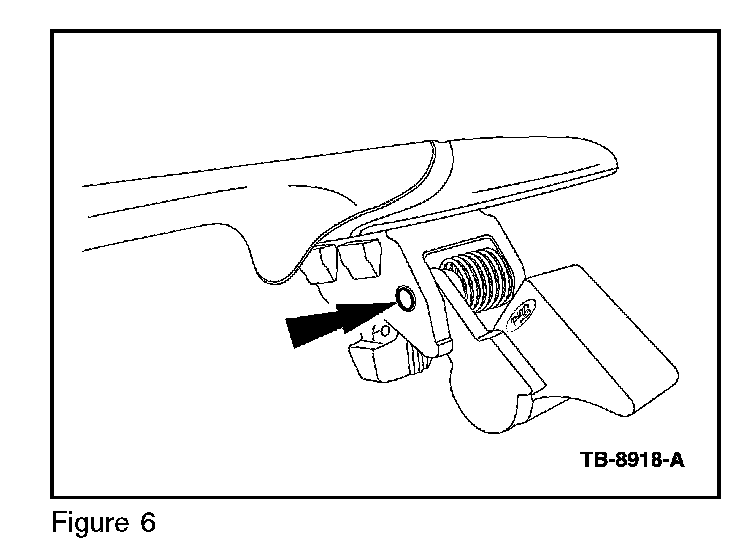

DO NOT PUSH PIN BACK INTO HANDLE. (FIGURE 6)
a. Position the actuating rod into clip in a neutral or bias up position.
b. Close the retaining clip and test the system to ensure that the exterior door handle is operating correctly.
c. Adjust the actuating rod as necessary.
NOTE
DO NOT BIAS THE ROD DOWN AND DO NOT BIAS THE FRONT DOOR LATCH.
NOTE
IF EXTERIOR DOOR HANDLE IS BROKEN, OR THE METAL PIN IS PULLED OUT OF THE SPRING ON THE BACK OF THE DOOR HANDLE, THEN REPLACE THE DOOR HANDLE PER WSM, SECTION 501-14
7. Position back the watershield.
8. Install the door trim panel. Refer to WSM, Section 501-05.
WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage
IMPORTANT: Warranty coverage limits/policies are not altered by a TSB. Warranty coverage limits are determined by the identified causal part.
OPERATION DESCRIPTION TIME
071607A 2005-2008 Mustang: Make 0.5 Hr.
Adjustments To The Door
Handle Actuating Rod
Following Procedure,
Includes Time To Remove
And Install Interior Door
Panel: One Door (Do Not
Use With 23943A)
071607B 2005-2008 Mustang: Make 0.8 Hr.
Adjustments To The Door
Handle Actuating Rod
Following Procedure,
Includes Time To Remove
And Install Interior Door
Panel: Both Doors (Do Not
Use With 23943A)
DEALER CODING
CONDITION
BASIC PART NO. CODE
7022152 OR 7022153 07
